Waveguide Switches

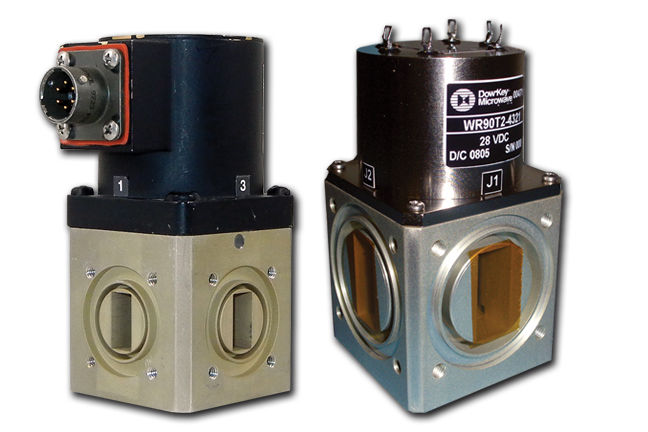

waveguide_images_series

Overview

Waveguide Switches are designed to route extremely high power signals over a narrow bandwidth at low to high frequencies, making them highly applicable to space applications. To meet this market demand, MPG's Dow-Key expanded its product line and engineering capabilities in 1993, with the acquisition of the Transco Space Qualified Products, augmenting our own industry heritage in Hi-Rel Space programs with an extended line of Waveguide Switching solutions.

Our current technical team, including many of the Transco Space Qualified Products engineers, will help you determine the optimal Waveguide Switch solution or work with your specifications to achieve the a custom design built to your requirements.

Dow-Key Microwave’s full line of Waveguide Switches can be purchased or purpose-built to the following specifications:

Find Products Catalog

Specifications

Waveguide Switch Configurations: Waveguide Switch configurations include Single Pole Double Throw (SPDT), Transfer Double Pole Double Throw (DPDT), and a Space Qualified Transfer Double Pole Double Throw (DPDT) Waveguide Switch with the following actuators: latching.

Waveguide Switch frequency: MPG's Dow-Key Microwave’s Waveguide Switches route RF signals over a bandwidth from 7.0 GHz to 62 GHz.

Waveguide Switch features: Our Waveguide Switches support maximum VSWR ranging from 1.1 to 1.22 with minimum isolation ranges from 55 dB to 60 dB and a max insertion loss from .08 dB to 15 dB, depending on configuration.

Waveguide Switches can be designed to meet customer specifications across the following ranges:

Operating Voltage: 24-30 Vdc

Switching time: 100 ms max. (WR 28 thru WR 90)

200 ms max. (WR 112)

Benefits

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Markets & Applications

Waveguide Switches can handle extremely high power, making them a good fit for multiple markets, including aerospace, electronic warfare, radar, and space .

Waveguide Switches

401AT

SPDT

SPDT, Single pole double throw waveguide switch offering

Ranges: Waveguide Switches support maximum VSWR ranging from 1.1 to 1.22 with minimum isolation ranges from 55 dB to 60 dB and a max insertion loss from .05 dB to .25 dB, depending on configuration and frequency.

Bandwidth: Waveguide Switches route RF signals over a bandwidth from 2.6 GHz to 62 GHz.

Find Products Learn More

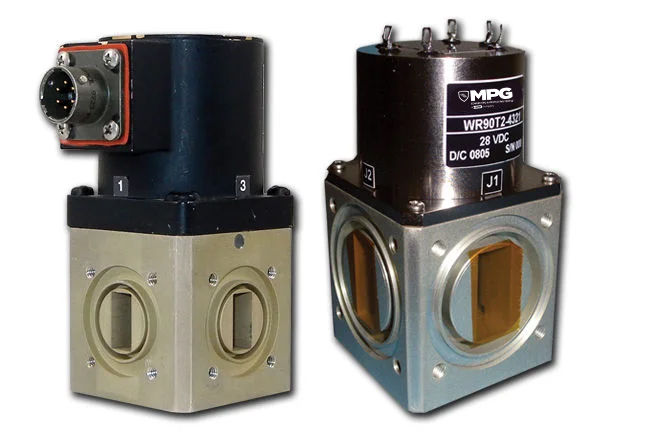

waveguide_images_series

DPDT

DPDT, Double pole double throw waveguide switch offering

Ranges: Our Waveguide Switches support maximum VSWR ranging from 1.1 to 1.22 with minimum isolation ranges from 55 dB to 60 dB and a max insertion loss from .08 dB to 15 dB, depending on configuration.

Bandwidth: Waveguide Switches route RF signals over a bandwidth from 7.0 GHz to 62 GHz.

Find Products Learn More
