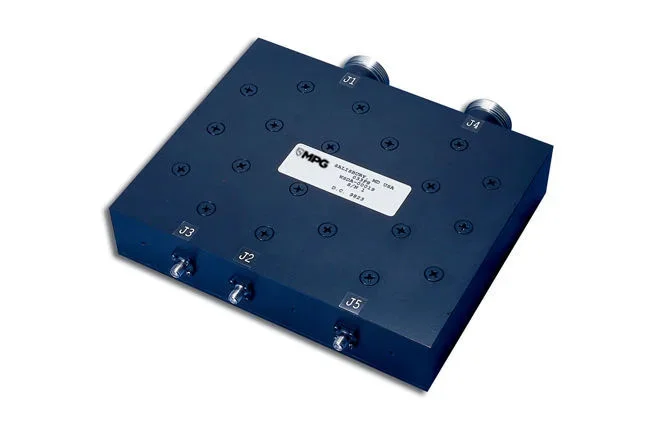

RF Multiplexers combine multiple filters to a common port to create a multi-channel module. Its block diagram consists of two parts: a distribution system, called the manifold, and a group of filters, which can be customized to meet lowpass, highpass, bandpass, or bandstop requirements.

The goal of an RF Multiplexer is to first exhibit each channel’s transfer function as if it were a standalone device. The second function of an RF multiplexer is to preserve impedance matching at the common port over the bands of interest.

Find Products Catalog

Multiplexers Filters

MPG_KLM_FL_MP_FIX_DX_MUL_WSDA-00019

Fixed

MPG’s BSC and K&L Microwave® fixed multiplexers utilize various topology to achieve optimum performance in a wide range of applications operating in 0.0005GHz to 94GHz frequency range with 0.1 to 200% bandwidth.

Available in configurable-to-order as well as custom designs to meet the most demanding applications.

Find Products Learn More

Features And Specifications

RF Multiplexer frequency: UHF from .5 GHz to 50 GHZ (L band, S band, C band, X band, Ku band, K band, Ka band).

RF Multiplexer features: RF Multiplexers support bandwidths from 1% to 200%, in configurations of 2 to 18 sections. Filters are available in a Q range of 250 to 10,000.

Benefits

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

RF Multiplexer channel-to-channel behavior may be categorized in one of three ways: as Overlapping Channels, with some bandwidths shared by three ports; Contiguous Channels, with adjacent channels joined at their 3dBc point and Non-Contiguous Channels, with a separating spectrum, or “guard band” between adjacent channel pairs. Given the flexibility of RF Multiplexers, they can be custom-fit to a variety of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.
