High Power Coaxial Switches



Overview

MPG Switch line of High Power RF & Microwave Switches fit applications where electromechanical switches fail to meet the size, cost and speed of project specifications. At microwave frequencies, a high power switch acts as a current-controlled resistor, allowing current to flow in a single direction. When forward biased, the switch relay behaves as a closed circuit, but when the current is reverse biased, the RF switch becomes an open circuit.

Find Products Catalog

Specifications

Configuration:
High Power Coaxial Switch configurations includes double pole three throw (DP3T) with the following actuators: failsafe and latching.

Frequency:
MPG's High Power Coaxial Switches route RF signals over a broad bandwidth from DC to 40+ GHz

Features:
Our High Power Coaxial Switches support maximum VSWR ranging from 1.1 to 1.95 with minimum isolation ranges from 55 dB to 90 dB and a max insertion loss from .1 dB to .8 dB, depending on configuration and frequency.

Ranges:

  • Operating Voltage (across temperature range): 12, 24 and 28 Vdc
  • Switching time: 10 ms to 30 ms max.

Benefits

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Markets & Applications

Offering low insertion loss and fast switching, a high power coaxial switch is a good fit for multiple markets, including aerospace electronic warfare, radar space automated test equipment (ATE) communications

High Power Coaxial Switches

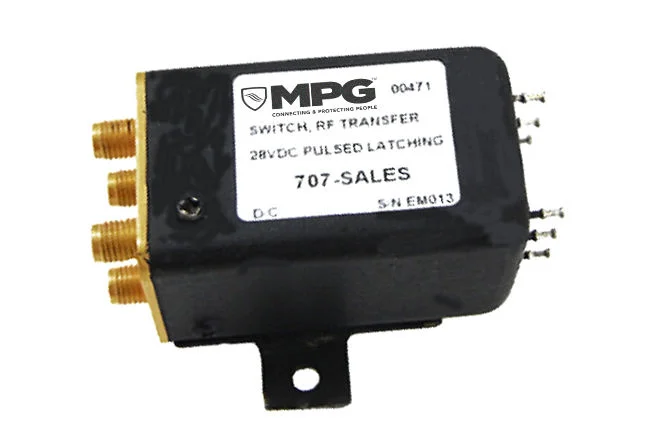

High_Power_707_648x432

Double Pole Double Throw (DPDT)

Ranges:
Coaxial Switches support maximum VSWR ranging from 1.1 to 1.95 with minimum isolation ranges from 55 dB to 90 dB and a max insertion loss from .1 dB to .8 dB, depending on configuration and frequency.

Bandwidth:
Coaxial Switches route RF signals over a broad bandwidth from DC to 26+ GHz

Find Products Learn More

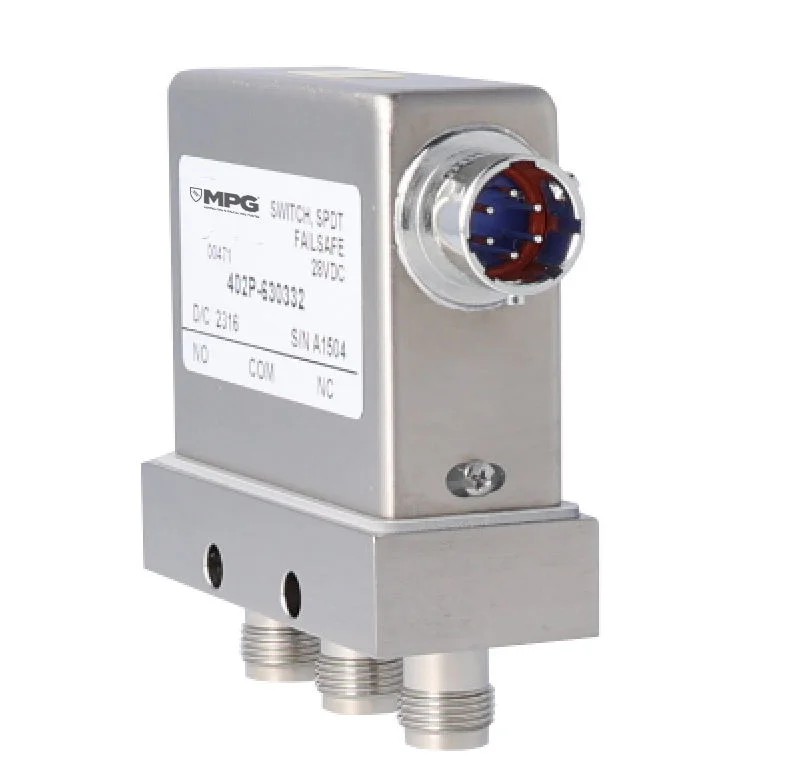

402 Series SPDT High Power Coaxial

SIngle Pole Double Throw (SPDT)

Ranges:

Our High Power Coax SPDT Switches support maximum VSWR ranging from 1.1 to 1.95 with minimum isolation ranges from 55 dB to 85 dB and a max insertion loss from .1 dB to .8 dB, depending on configuration.

Bandwidth:

High Power Coaxial Switches route RF signals over a broad bandwidth from DC - 12.4 GHz

Find Products Learn More


SIngle Pole Multiple Throw (SPnT)

Ranges:

Our High Power SPnT Coaxial Switches support maximum VSWR ranging from 1.2 to 1.70 with minimum isolation ranges from 65 dB to 100 dB and a max insertion loss from .36 dB to .68 dB, depending on configuration.

Bandwidth:

MPG's High Power Coax SPDT Switches Switches route RF signals over a broad bandwidth from DC to 40 GHz

Find Products Learn More

Special Processes and Manufacturing

Across the MPG facilities, engineers utilize in-house machine shops equipped with modern technology and machinery to design and manufacture to exacting customer specifications. Our Switches can be found anywhere that quality is valued, including some of the most challenging aerospace, military, commercial and space applications.
