High Repeatability Coaxial Switches

Overview

Microwave Products Group (MPG) proudly introduces the HERCULES^TM Switch Series - a new line of high-performance RF switches engineered for the rigorous demands of ATE platforms. Our single pole double throw (SPDT) and single pole double throw internally terminated (SPDT-IT) switches are designed for high repeatability , reliability meant to last with 10 Million cycle life.

High Repeatability Switches

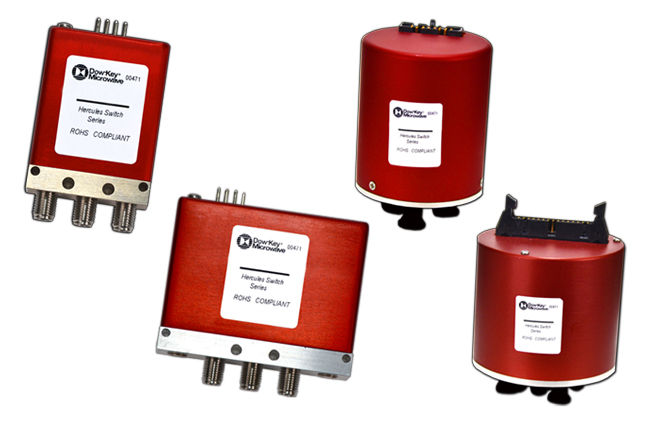

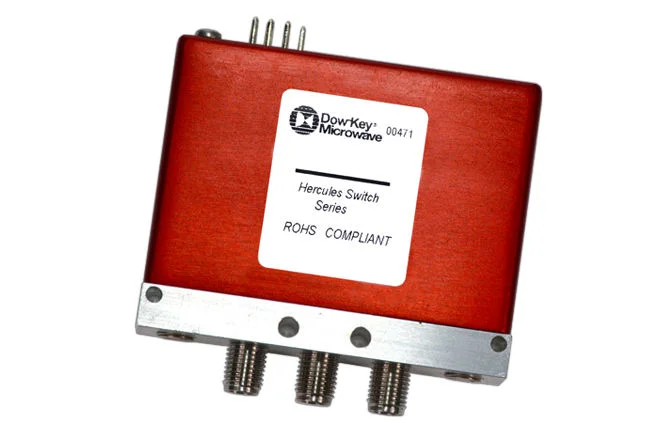

Hercules SDPT Switch

Performance:
The Hercules SPDT Switch is an electromechanical radio frequency switch, designed for high reliability, high repeatability, and long life to meet your application needs.

Frequency:
Hercules Switches route RF signals over a bandwidth from DC to 27 GHz.

Learn More

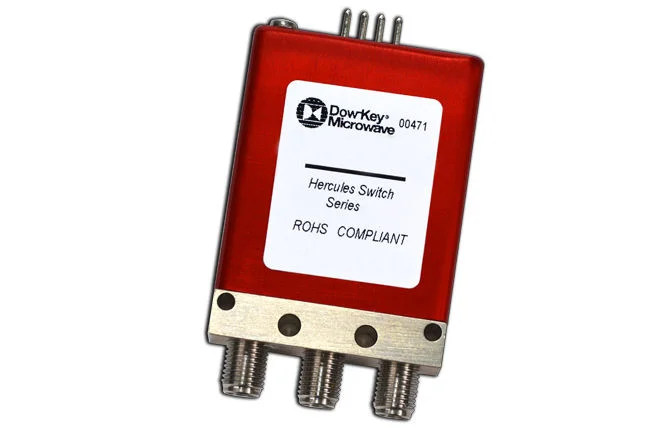

Hercules SPDT-IT Switch

Performance:
The Hercules High Repeatability Coaxial SPDT-IT Switch is an electromechanical radio frequency switch, designed for high reliability, high repeatability, and long life to meet your application needs.

Frequency:
High Repeatability Switches route RF signals over a bandwidth from DC to 27 GHz.

Learn More

Specifications

Configurations:
Single pole double throw (SPDT), single pole double throw internally terminated (SPDT-IT) in the following modes: Latching, Self Cut-off, Suppression Diodes, Solder Pins, Indicators. .

Frequency:
Our Herculles Switches route RF signals over a bandwidth from DC to 27 GHz.

Features:
Our Hercules Switches support maximum VSWR 1.15 to 1.50, with minimum isolation ranges from 60 dB to 80 dB, and a maximum insertion loss from .15 dB to .50 dB.

Operating Voltage:
12-28 V

Switching time:
15 ms max.

Benefits

MODULAR

SWaP

CUSTOM DESIGN

Applications

Offering reliability and at an economical cost, Dow Key’s Hercules Switch family is a good fit for the automated test equipment (ATE) market.
