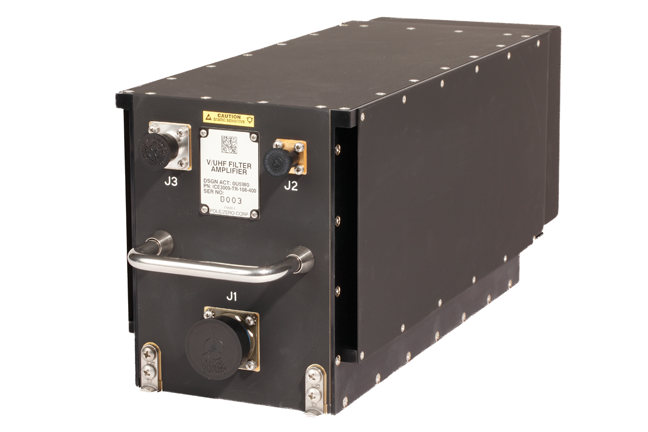

ICE 3009

MPG Solutions ICE3009 subsystem is an agile filter for the VHF-L, VHF-H and UHF frequency bands.

Overview

Product Name : ICE 3009

The ICE 3009 subsystem is an agile filter for the VHF-L, VHF-H and UHF frequency bands. It allows operation of a number of transceivers in a cosite environment.

Product Finder Catalog

MODULAR

SWAP

CUSTOM DESIGN

Request For Quote

Problems Solved

MPG Solutions VHF/UHF Filter provides multiple poles of RF selectivity to reduce broadband noise in transmit mode of operation and to reduce interfering signals at the transceiver’s RF input in receive mode at Have Quick II/IIa and SATURN tuning speeds. This design incorporates a flexible control scheme that can be configured at the factory for various radio interfaces (ARC-210, ARC-231, ARINC 429, etc.). The design is highly integrated and includes all filters, amplifiers, power supply, transmit and receive switching (including a bypass mode), and Built-in-Test (BIT). A mounting tray is available as an option for easy incorporation on your platform.

Applications

MPG Solutions are qualified for airborne platforms and ground mobile or shipboard communication systems. Our flexible solutions support multiple radio models, including ARC-225, ARC-231, ARC-210 and ARC-210D radios, providing built in agility to simplify future integrations with new technology.

Markets

Communications Defense

Product Specifications

Frequency Coverage

Receive Gain

RF Output Power

Size

Weight

30-88 MHz (VHFL)

108-174 MHz (VHFH)

225-400 MHz (UHF)

5.0 to 10.0 dB

20 W (AM) to 100 W (FM)

depending on frequency band configuration

6 x 7 x 15.7 / 152 x 178 x 398

20 lbs. / 9.07 kg
