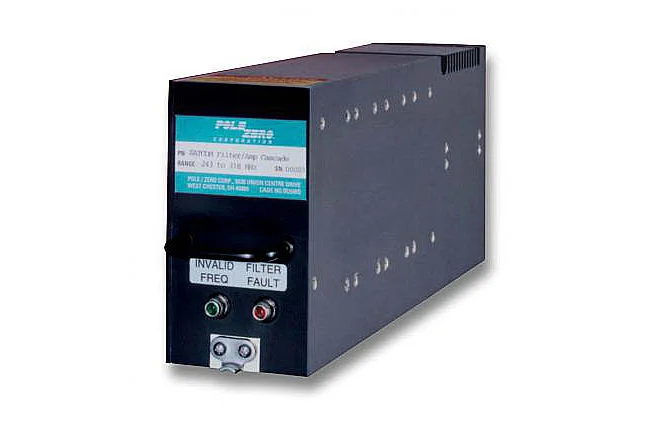

ICE 3001

MPG Solutions ICE3001 subsystem is an agile filter for the SATCOM frequency band, capable of acting as either a receive or a transmit filter


ice3001-400x400

Overview

Product SKU ID : ICE3001-TR-243-318

Product Name : ICE 3001

ICE3001 provides multiple poles of RF selectivity to reduce broadband noise, harmonics, and spurious signals for either receive or transmit applications. This filter is a highly integrated design incorporating complete Built-in-Test capability. The design has been qualified for military applications. A dual-mount tray is also available as an option for easy incorporation on your platform. Cost-effective modifications are available on the ICE3001.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWAP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Problems Solved

  • Enables simultaneous operations of multiple transceivers
  • Provides multiple poles of RF selectivity to reduce broadband noise, harmonics, and spurious signals for either receive or transmit applications

Applications

MPG Solutions are qualified for airborne platforms and ground mobile or shipboard communication systems. Our flexible solutions support multiple radio models, including ARC-225, ARC-231, ARC-210 and ARC-210D radios, providing built in agility to simplify future integrations with new technology.

Markets

Communications Defense

ice3001-400x400

Product Specifications

Frequency Coverage

Receive Gain

Transmit RF Output Power

Size Weight
243-270 MHz (Receive) 292-318 MHz (Transmit) 5 dB (Receive) 11 dB (Transmit) +18 dBm 3 x 5.5 x 13 / 75 x 139 x 337 9lbs. / 4.08 kg

Resources

Featured Brand

PZ_Logo

Pole/Zero

Through continuous product, technology, and process innovation, Pole/Zero continues to expand its role as the leading supplier of unique, cost-effective solutions to the most complex of RF challenges. Our comprehensive suite of RF interference mitigation devices includes Tunable Filters, Low Noise Amplifiers, Integrated Cosite Equipment, Cosite Power Amplifiers and a wide range of other products tailored to the interference characteristics of multiple industries.

Our expertise and experience in space and military markets, has led to industry leading products that readily meet the unique size, weight and power requirements of cosite environments, placing us as a leading supplier for military applications.
