Referenced Canceller


MIC 800x700

Overview

Product SKU ID :

Product Name : Referenced Canceller

Designed for integration between receivers and antennas, the MIC accepts reference signals coupled from the offending cosite RF emitters and excises the undesired RF signals from each associated emitter to allow the receivers to operate nominally.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWAP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

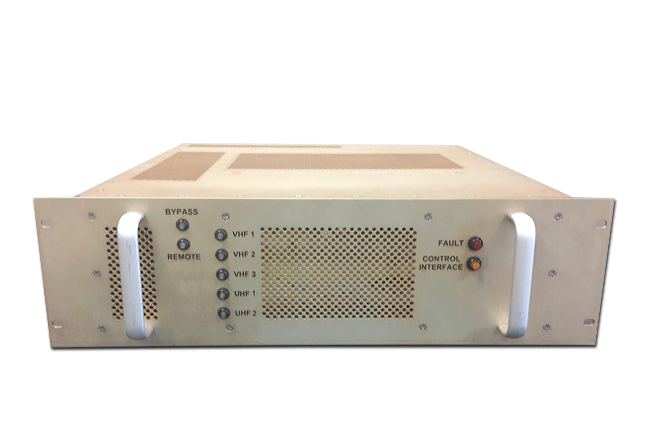

The Referenced Canceller is a rack-mount VHF/UHF cosite interference mitigation system that cancels in-band interferers on the same mobile platform (i.e., shipboard, airborne, ground).

Markets

Communications Defense

Referenced Canceller

Product Specifications

Frequency Coverage

Receive Insertion Loss

Interference Null Depth

Size Weight
30-88 MHz (VHF Low) 108-174 MHz (VHF High) 225-400 MHz (UHF) 5 dB 45 dB (Typical) 3U 19 (in.) rack mounting 19 lbs. / 8.6 kg

Resources

Featured Brand

PZ_Logo

Pole/Zero

Through continuous product, technology, and process innovation, Pole/Zero continues to expand its role as the leading supplier of unique, cost-effective solutions to the most complex of RF challenges. Our comprehensive suite of RF interference mitigation devices includes Tunable Filters, Low Noise Amplifiers, Integrated Cosite Equipment, Cosite Power Amplifiers and a wide range of other products tailored to the interference characteristics of multiple industries.

Our expertise and experience in space and military markets, has led to industry leading products that readily meet the unique size, weight and power requirements of cosite environments, placing us as a leading supplier for military applications.
