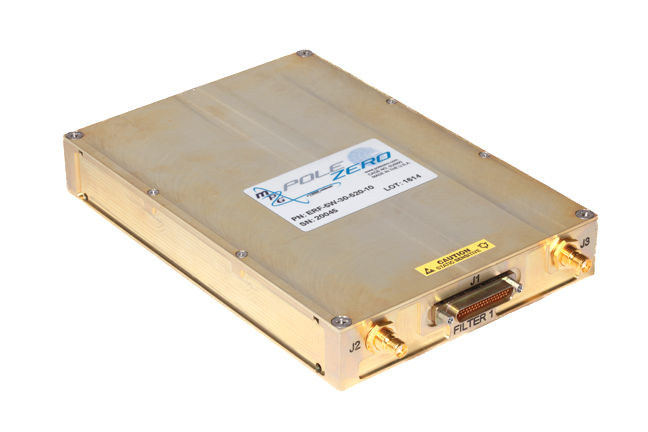

ERF-5W™ Series (Single & Dual)

Overview

Product SKU ID:

Product Name : ERF-5W™ Series (Single & Dual)

The new ERF-5W™ filter takes Pole/Zero’s MINI-ERF® technology to a higher level of RF power handling, with 5W (average) in-band power handling, and covering the entire military tactical radio tuning range of 30-520 MHz in one integrated package. This tunability is accomplished by the use of three poles of selectivity, multiple internal tunable filters along with high performance PIN diode RF band select switches. The tunable filters are designed to minimize size and power consumption, while maintaining high RF power handling and linearity characteristics. Serial control is accomplished via a standard Serial Peripheral Interface (SPI)-based bus.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

The reduced size, weight, power consumption, and cost of Pole/Zero’s Integrated Microwave Notch Filters (IMF Filters) make them suitable for applications in the Electronic Warfare and SATCOM markets.

Markets

Defense Aerospace Communications GPS

Product Specifications

Absolute Maximum Ratings

Symbol	Parameter	Conditions	Min	Max	Unit
v	Supply voltage	-	-0.3	6.5	V
CCD	gital supply voltage	-	-0.5	6.5
VI	Input voltage	On all digital interface input pins	-0.5	6.5	V
1K	Digital interface pin Input clamp current	VI<O	-50	-	mA
0K	Digital interface pin output clamp current	vo<0	-50	-	mA
PINBAND	In-band RF input power level	Signal is in passband f = 30 —520MHz	-	37	dBm
POUTBAND	Out-of-band RF input power level	-	-	40	dBm
TRATE	Maximum tune rate (frequency hopping)	-	-	1	kHz

Handling Ratings

Symbol	Parameter	Conditions	Min	Max	Unit
TS	Storage temperature	-	-65	150	°C

Recommended Operating Conditions

Symbol	Parameter	Conditions	Min	Nom	Max	Unit
VCC	Supply voltage	-	4.5	5	5.5	V
VCCD	Digital supply voltage	-	1.65	-	5.5	V
Pin	Maximum RF input power for linear operation	Signal is in passband	-	-	37	dBm
TA	Ambient temperature	-	-40	-	+85	°C

Electrical Characteristics

Symbol	Parameter	Conditions	Min	Nom	Max	Unit
lcc_snrc	Vcc current consumption, statically tuned	At nominal Vcc voltage	0.27	-	1.5	A
lcc_Hop	VCC current consumption, hopping	Nominal VCC, hopping at 1 kHz	0.27	-	2	A
VIN	Digital high level input voltage	On all digital interface input pins except PAR/SER ̅̅̅̅	*0.75 Vcco**		-	V
VIN	Digital high level input voltage	On PAR/SER ̅̅̅̅̅̅	2.3	-	-	V
VIL	Digital low level input voltage	On all digital interface output pins except PAR/SÉN	-	-	0.2 • Vccd	V
VIL	Digital low level input voltage	On PAR/SER	-	-	0.66	V
IIH/IIL	Digital Interface pin input logic current	-	-100	-	100	PA
F(RANGE)	Tunable frequency range	-	30	-	520	MHz
zo	Input/output impedance	-	-	50	-	-
RL	Retum loss	Zo = 50	12	15	-	dB
IL	Insertion loss	-	-	2.5	3.5	dB
BW	Bandwidth (3 dB)	-	7.4	10	11.6	%
SEL10%	Selectivity 10% removed from the center frequency	fo ± 10%	14	18	-	dBc
SEL.20%	Selectivity 20% removed from the center frequency	fo ± 20%	30	35	-	dBc
SELULTI%TE	Selectivity at 2x fo	-	-	-	-
	30 to 91.25 MHz	2 X fo	-	65	50	dBc
	91.25 to 249 MHz	2 X fo	-	65	50	dBc
	249 to 520 MHz	2 X fo	-	50	30	dBc
llP3	Input third order intermodulation intercept point	2 tone, In-Band	44	47		dBm
NF	NoSe figure	-	-	TBD	TBD	dB
TTUNE	Tune time	-	-	25	50	ps
FDRIFT	Center frequency drift over temperature	-409C to +85ec	-	-50	-80	ppm/'C
