Fan In / Fan Out (FIFO)

Full Fan-In Fan-Out (FIFO) systems are non-blocking devices, allowing simultaneous connections between any input to any output.


FIFO

Overview

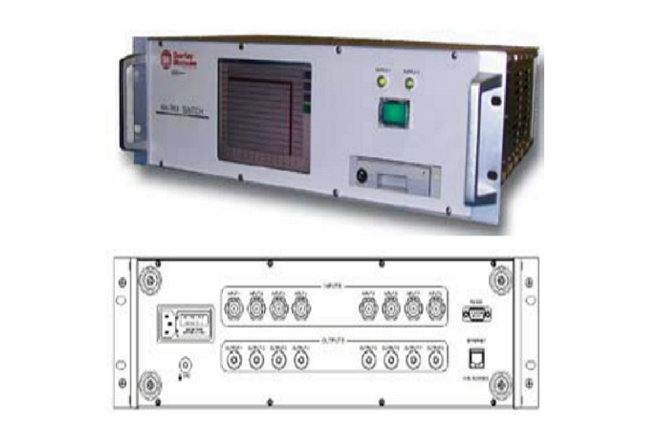

Non-blocking FIFO systems are offered in coaxial and solid state designs, and facilitate user flexibility by allowing any input to be connected to any output(s) simultaneously. All inputs are outfitted with high linearity amplifiers in order to overcome system insertion loss and achieve excellent RF performance.

Benefits

Expanding switching versatility, FIFO matrices deliver a host of benefits, including:

  • Windows XP operating system (CPU)
  • LCD touch screen display for local control
  • Redundant power supplies with LED monitoring on the front panel
  • Support for coaxial switch systems operating from 1 GHz to 18 GHz with up to 8 inputs by 8 outputs
  • Fast switching time
  • Excellent RF performance

Solution Brochure Capabilities

Problems Solved

Since any input can be connected to any output at will, FIFO matrices are applicable for complex testing situations.

  • Low power solutions
  • Complex test setups and signal switching
