5IM10-30/XQ400-N/N

Overview

Product SKU:

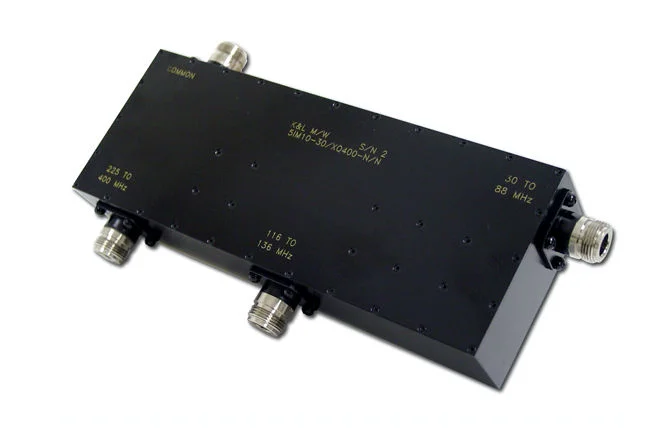

Product Name: 5IM10-30/XQ400-N/N

Type N Connectors
Power capabilities 40 W
Broadcasting Systems
Amateur Radio Operations
Aeronautical Navigation

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile performance under multiple conditions, our Triplexers are applicable for many markets, including defense, EW, RADAR, communications, SATCOM, and automated test equipment.

Markets

Defense Communications ATE

Product Specifications

Insertion loss:		VSWR	Stopbands:		Dimensions	Connectors
@ 30 to 88 MHz	0.5 dB	1.5:1 across passbands	@ 116 Mhz	40 dB	8.0” x 3.0” x 1.5”	N Females
@ 116 to 136 MHz	0.75 dB		@ 88 and 156 Mhz	40 dB
@ 225 to 400 MHz	0.5 dB		@ 136 and 174 Mhz	40 dB
