Triplexer

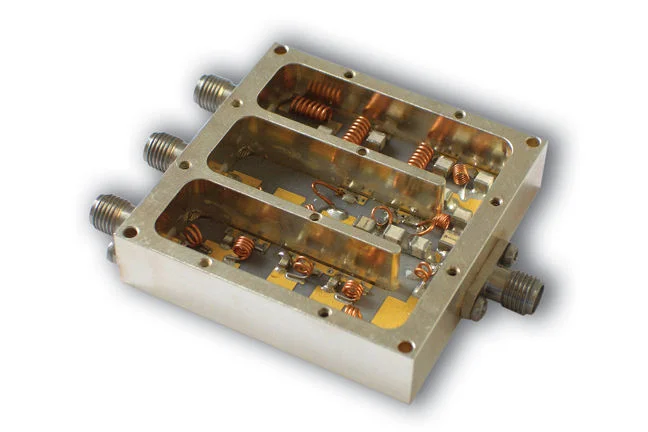

MPG_BSC_F_Multiplexers_Fixed_Lumped-Element-Triplexer

Overview

A Triplexer is a four-port, Fixed Filter designed to route signals from a single port across three different bands according to frequency. Creation of a Triplexer can be straightforward in narrowband applications. In wideband scenarios, preserving impedance matching at the common port across the bands of interest becomes complex and requires experienced know how. MPG brings together practiced engineers with state-of-the-art technology to ensure the creation of high-performing and durable Triplexer filters.

Find Products Catalog

About The Technology

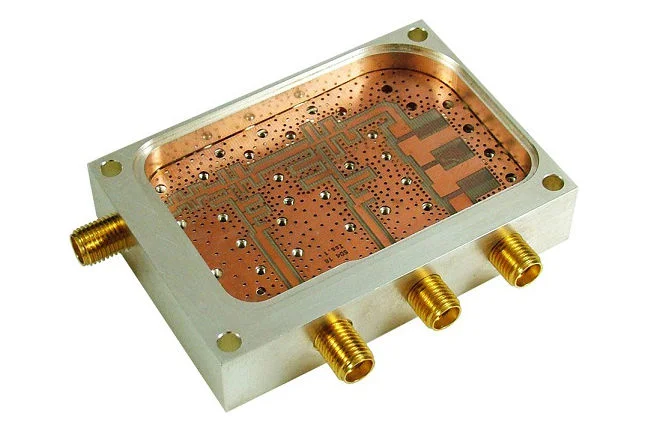

MPG_BSC_F_Multiplexer_Triplexer

Triplexer(3)

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Maecenas vel nunc interdum, rutrum tortor tincidunt, tempor odio. Sed tempus iaculis tellus id rutrum.

Product Inquiry

Features and Specifications:

Triplexer frequency: HF, VHF, UHF band covering frequencies of 0.3 GHz to 6000 GHz.

Triplexer features: Multiplexers are realised in different technologies, such as Lumped Element, Combline and Suspended Stripline ( Q’s ranging from 200 to 2000 dependant on technology) and available as ‘open’ or ‘closed’ configurations to suit customer needs. Narrowband to broadband passbands can be offered, with designs being contiguous or non-contiguous.

Benefits

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Offering durable, dependable performance, the Triplexer filter delivers the following advantages:

  • Low insertion loss and high channel to channel isolation

  • Rugged packages available for harsh environments

  • Small package sizes available
