WSA-00102

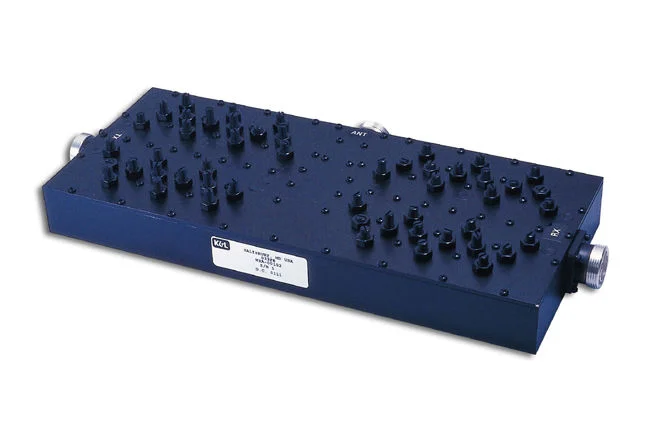

DCS/UMTS Dual Band Duplexer Assembly (DCS: Rx 1710-1785 & Tx 1805-1880 MHz, UMTS: Rx 1920-1980 & Tx 2110-2170 MHz)

Overview

Product SKU ID :

Product Name : WSA-00102

Allows for simplified dual band handset testing or can be used in dual band base station applications.

Contains two duplexers with similar function ports multiplexed to provide single receive, transmit, and antenna ports for integration to test or base transceiver systems.

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defense Communications

Product Specifications

Receive Passbands

Transmit Passbands

Passband Insertion Loss

Passband Flatness

Antenna to Receive Rejection

Transmit to Antenna Rejection

DCS

UMTS

DCS

UMTS

DC-1640 MHz

1805-1880 MHz

2030-2170 MHz

2170-6000 MHz

6000-12,750 MHz

DC-1785 MHz

1920-2040 MHz

2225-6000 MHz

6000-2750 MHz

1710-1785 MHz

1920-1980 MHz

1805-1880 MHz

2110-2170 MHz

1.2 dB maximum

0.6 dB p-p maximum

50 dB minimum

35 dB minimum

50 dB minimum

35 dB minimum

Isolation		Passband Return Loss	Transmit Passband Maximum Power Handling		Dimensions (excluding connectors)	Connectors	Operating Temperature	Storage Temperature	Operating Humidity
Rx Passband(s) to Tx Passbands(s)	Tx Passband(s) to Rx Passbands(s)		CW	Peak Instantaneous
50 dB minimum	50 dB minimum	14 dB minimum	100 watts	1000 watts	14”L x 6”W x 2.2”H [355.6 x 152.4 x 55.9mm]	7/16-F	-20 to +70°C	-40 to +85°C	0 to 90%, relative, non-condensing
