Duplexer

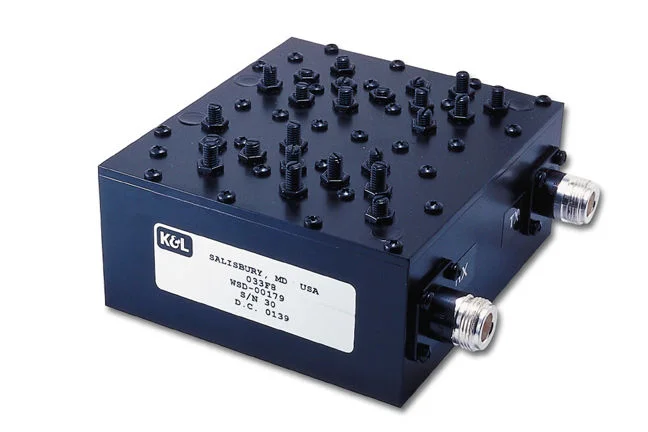

KLM_FL_MP_FIX_DX_MUL_WSD-00179_

Overview

MPG provides duplexers built to customers' electrical, mechanical, and environmental specifications. Wireless designs also available.

L band, S band, C band, S band, and Ku band versions in band pass, band stop, high pass, and low passs configurations.

Find Products Catalog

About The Technology

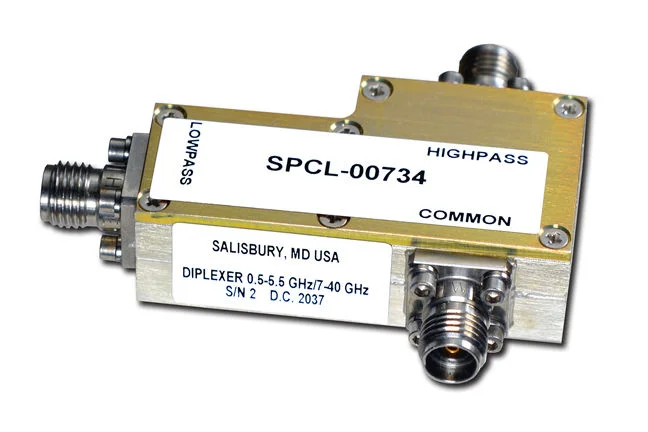

MPG_KLM_FL_MP_FIX_DX_MUL_SPCL-00734

Duplexers

Duplexers separate the carrier from its harmonics to prevent the carrier from reflecting the D.U.T. or entering the spectrum analyzer.

Product Inquiry

Features & Specifications

Frequency: DC though HF, VHF, UHF, and up to Ku band covering frequency ranges of DC to 40GHz.

Features: Multiplexers are realised in different technologies, such as Lumped Element, Combline and Suspended Stripline ( Q’s ranging from 200 to 2000 dependant on technology) and available as ‘open’ or ‘closed’ configurations to suit customer needs. Narrowband to broadband passbands can be offered, with designs being contiguous or non-contiguous.

Benefits

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Our duplexers are applicable for multiple markets, including defense, EW, RADAR, communications, SATCOM, and automated test equipment.
