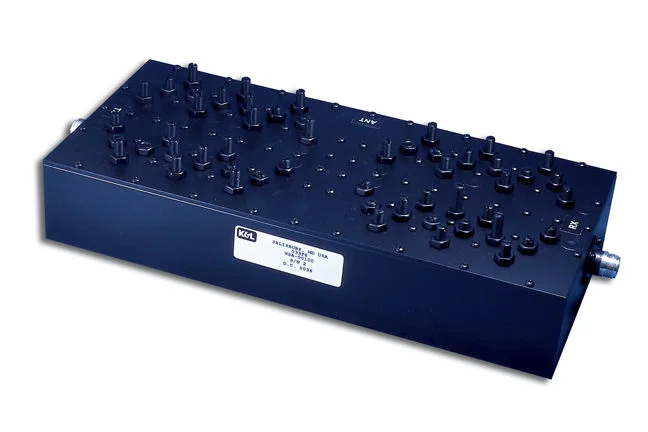

WSA-00100 - EGSM/DCS Dual Band Duplexer

Overview

Product SKU ID :

Product Name : WSA-00100

Simplifies dual band handset testing, or can be used in dual band base station applications.

EGSM band 880 to 915 MHz and 925 to 960 MHz.

DCS band 1710 to 1785 MHz and 1805 to 1880 MHz.

Single receive, transmit, and antenna ports

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defense Communications

Product Specifications

Receive Passbands		Transmit Passbands		Passband Insertion Loss		Passband Ripple	Antenna to Receive Rejection
EGSM	DCS	EGSM	DCS	EGSM	DCS	0.8 dB p-p maximum	DC-845 MHz	925-1630 MHz	1805-2550 MHz
880-915 MHz	1710-1785 MHz	925-960 MHz	1805-1880 MHz	1.2 dB maximum	1.0 dB maximum	0.8 dB p-p maximum	50 dB minimum	50 dB minimum	50 dB minimum

Transmit to Antenna Rejection

Isolation

Passband Return Loss

Maximum Transmit Power Handling

Operating Temperature

Storage Temperature

Operating Humidity

Dimensions
(excluding connectors)

Connectors

DC-915 MHz

995-1785 MHz

1960-2550 MHz

Rx Passband(s) to Tx passbands(s)

Tx Passband(s) to Rx passbands(s)

14 dB minimum

Peak Instantaneous

0 to +50°C

-40 to +85°C

0 to 90%, relative, non-condensing

13.19”L x 5.94”W x 3”H
[335 x 150.8 x 76.2mm]

N-F (3 places)

50 dB minimum

100 watts

1000 watts
