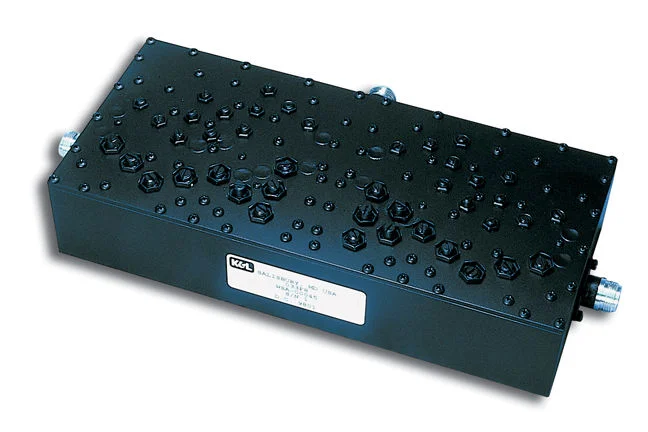

WSA-00045

AMPS/PCS Dual Band Duplexer

Overview

Product SKU ID :

Product Name : WSA-00045

Simplifies dual band handset testing, or can be used in dual band base station applications.

AMPS band 824 to 849 MHz and 869 to 894 MHz.

PCS band 1850 to 1910 MHz and 1930 to 1990 MHz.

Single receive, transmit and antenna ports

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defense Communications

Product Specifications

Receive Passbands		Transmit Passbands		Passband Insertion Loss	Passband Ripple	Antenna to Receive Rejection			Transmit to Antenna Rejection
AMPS	PCS	AMPS	PCS	1.0 dB max.	0.8 dB p-p max.	DC-780 MHz	869-1790 MHz	1930-3000 MHz	DC-849 MHz	935-1910 MHz	2050-3000 MHz
824-849 MHz	1850-1910 MHz	869-894 MHz	1930-1990 MHz	1.0 dB max.	0.8 dB p-p max.	40 dB min.	40 dB min.	40 dB min.	40 dB min.	40 dB min.	40 dB min.

Isolation		Passband Return Loss	Maximum Power Handling		Operating Temperature	Storage Temperature	Operating Humidity	Dimensions	2.40”H (excluding connectors)	Connectors
Rx Passband(s) to Tx Passband(s)	Tx Passband(s) to Rx Passband(s)	12 dB min.	CW	Peak Instantaneous	0 to +50°C	-40°C to +85°C	0 to 90%, non-condensing	10.10”L x 4.60”W x	[256.5 x 116.8 x 61.0mm]	N-F (x3)
40 dB min.	40 dB min.		100 watts	500 watts
