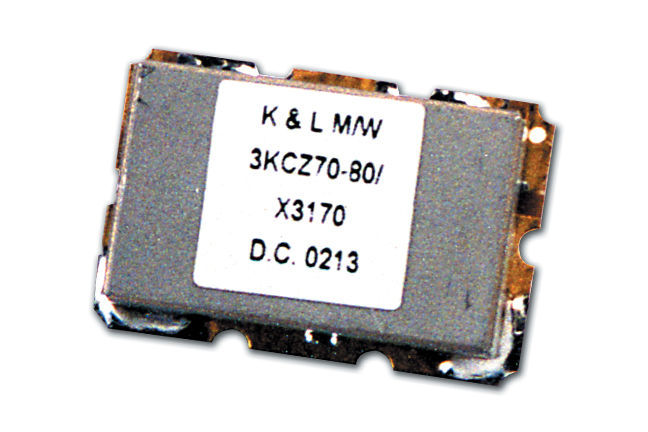

3KCZ70-80/X3170

Overview

Product SKU ID:

Product Name : 3KCZ70-80/X3170

Low Profile

Surface Mountable

Withstands Reflow Temperatures

Dimensions: 0.75" W x 0.50" H x 0.30" D

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Diplexers are applicable for multiple markets, including defense, EW, communications, SATCOM, and automated test equipment.

Markets

Defense Aerospace Communications GPS

Product Specifications

Passband Return Loss		Insertion Loss	Rejection			Operating Temperature	Storage Temperature	Dimensions
80-870 MHz	1165-3170 MHz	80-870 MHz	1165-1950 MHz	1950-6000 MHz	6000-9725 MHz	Operating Temperature	Storage Temperature	0.75 W x 0.50 H x 0.30” D [19.05 x 12.7 x 7.62mm]
14 dB	14 dB	<0.5 dB	30 dB minimum	25 dB minimum	15 dB minimum	-40°C to +85°C	-65°C to +95°C	0.75 W x 0.50 H x 0.30” D [19.05 x 12.7 x 7.62mm]

Resources

Pole/Zero ICE Product Catalog

View

BSC Filters Brochure

View

K&L Microwave Filters Product Catalog

View

Tunable Filters Brochure

View

Access Filter Wizard

Visit

Access QuEST

Visit
