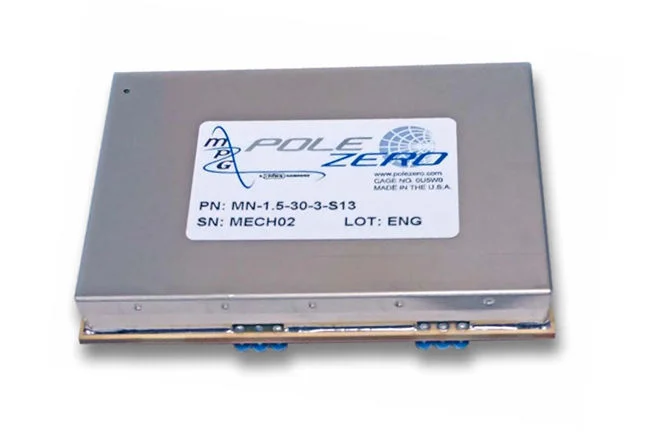

HF-ERF™ Series


hr-erf

Overview

Product SKU ID:

Product Name : HF-ERF™ Series

The HF-ERF™ is an internally switched 3‑band, low cost, miniature, high performance tunable filter. The HF-ERF™ was designed to have the best insertion loss and Q in the smallest package possible, 2.0” x 2.78” x 0.6”. All HF-ERF™ filters are fully tested and aligned by Pole/Zero for convenience and ease of use. Both SPI and Parallel control interfaces are available in one filter. Modified variants are available upon request

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Delivering high performance in a small package, Pole/Zero’s ERF Tunable Filter is applicable for multiple markets, including defense, EW, radar, communications, satcom, and automated test equipment.

Markets

Defense Aerospace Communications GPS

MPG_Connecting_Protecting

Product Specifications

Frequency Coverage  Input/Output Impedance  Inband Input/Output VSWR  Insertion Loss  Percent Bandwidth  Ultimate Attenuation  Shape Factor (30 dB/3 dB)  Inband RF Power Handling  Out of Band RF Power Handling  Inband Third Order Intercept Point  Tuning Control  Tuning Speed  DC Power  Operating Temperature Range  Size (in. / mm.)
30 MHz to 520 MHz  50 Ω  1.5: 1 typical, 2.2: 1 max  See Table 1 below  See Table 1 below  65 dB typical  6 typical, 7.2 max  +32 dBm (input, typical)  +33 dBm @ +/- 15%  +40 dBm (input)  Serial (SPI)  15 µsec typical, 21 µsec max  +3.3 VDC @ 200 mA max  +100 VDC @ 2.5mA max  -40 to +85°C   1.75 x 2.4 x .385 / 44.5 x 61 x 9.8
Part Number Frequency Typical Selectivity Typ. 3 dB  Insertion
Range (MHz)  @ fc +/- 10% (dBc)  BW (%) Loss
  Typ. Min Typ.  Max  Typ.  Max
 MN-30-520-4-S04  30-520 22 19  4.7  5.4 5.2 7
MN-30-520-7-S04 30-520 16 14 7.2 8.2 3.5 5
