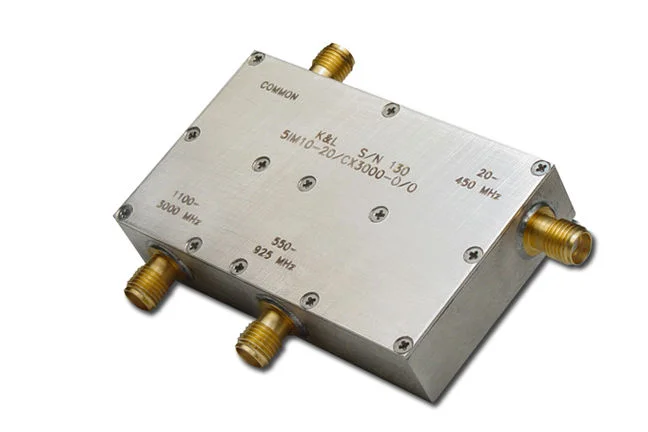

5IM10-20/CX3000-O/O

Overview Section

Contiguous VSWR of 1.34:1 from 20 to 3000 MHz
Less than 1.0 dB Loss Across the Passbands
Aeronautical Navigation
Fixed and Mobile Broadcasting
Military and Commercial

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile performance under multiple conditions, our Triplexers are applicable for many markets, including defense, EW, RADAR, communications, SATCOM, and automated test equipment.

Markets

Defense Communications ATE

Product Specifications Section

1.0 dB Loss

VSWR
1.34:1

Rejection

30 dB

50 dB

30 dB

Group Delay Variation

@ 20 - 450 MHz

@ 550 - 925 MHz

@ 1100 - 3000 MHz

20 - 3000 MHz

30 dB

50 dB

@ 90 - 450 MHz

@ 1100 - 3000 MHz

@ 20 - 800 MHz

@ 800 - 925 MHz

< 6.0 nS

@ 550 - 3000 MHz

@ 20 - 90 MHz

Across 20 - 450 MHz

Across 550 - 925 MHz

Across 1100 - 3000 MHz
