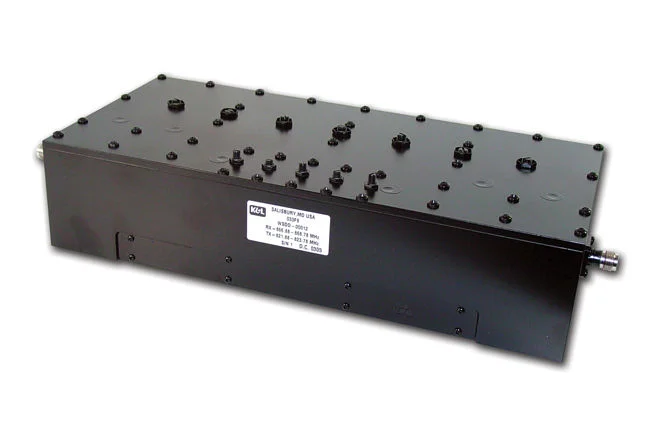

WSDD-00012 - Public Safety Interference Dual Duplexer


MPG_KLM_FL_MP_FIX_DX_MUL_WSDD-00012

Overview

  • Product SKU ID :
  • Product Name : WSDD-00012
  • Reduces Interference to Public Safety Radios Caused by Commercial SMR and A-Band Cellular.
  • Installs Easily, Without Radio Modifications.
  • High Receive Selectivity
  • Low Transmit Loss
MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

DefenseCommunications

MPG_Connecting_Protecting

PRODUCT SPECIFICATIONS

Passbands Passband Insertion Loss Passband Return Loss Rejection Transmit Passband Power Handling
Transmit Receive Transmit Receive DC-750 MHz 855-865.88 MHz 868.78-900 MHz 900-1000 MHz CW Peak Instantaneous
821.88-823.78 MHz 866.88-868.78 MHz 0.4 dB maximum 1.75 dB maximum 14 dB minimum 40 dB minimum 17 dB minimum 17 dB minimum 40 dB minimum 5 watts 50 watts
Dimensions (excluding connectors) Connectors Operating Temperature Storage Temperature Operating Humidity
13.0”D x 6.0”W x 3.25”H (Max.) [330.2 x 152.4 x 82.6mm] TNC-F (x2) (Mini UHF optional) -10 to +60°C -40 to +85°C 0 to 90%, non condensing
