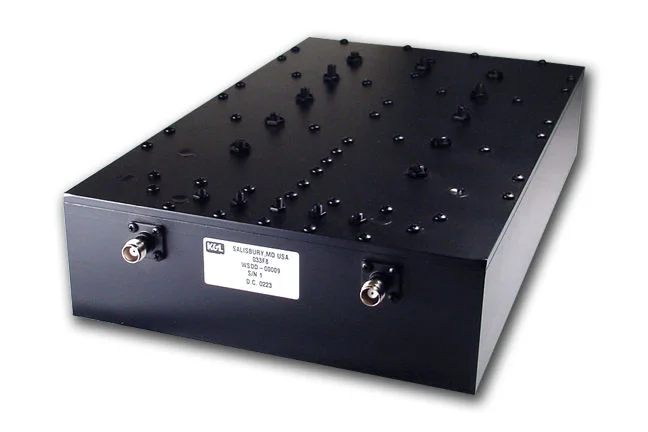

WSDD-00009 - SMR Interference Suppression Dual Duplexer

Overview

Product SKU ID :
Product Name : WSDD-00009
Designed to Reduce Interference to Public Safety
Radios Caused by Commercial SMR Services
Installs Easily, Without Radio Modifications
High Receive Selectivity
Low Transmit Loss

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

DefenseCommunications

PRODUCT SPECIFICATIONS

Passbands

Passband Insertion Loss

Passband Return Loss

Rejection

Transmit Passband Power Handling

Dimensions (excluding connectors)

Connectors

Operating Temperature

Storage Temperature

Operating Humidity

Transmit

Receive

Transmit

Receive

DC-650 MHz

850-855.075 MHz

862.10-869 MHz

869-960 MHz

Peak Instantaneous

811.075-816.10 MHz

856.075-861.10 MHz

0.4 dB maximum

1.6 dB maximum

14 dB minimum

50 dB minimum

17 dB minimum

35 dB minimum

50 watts

250 watts

14.4”D x 8.75”W x 3.25”H (Max.) [365.8 x 222.3 x 82.6mm]

TNC-F (x2)

-10 to +60°C

-40 to +85°C

0 to 90%, non condensing
