WSD-01255

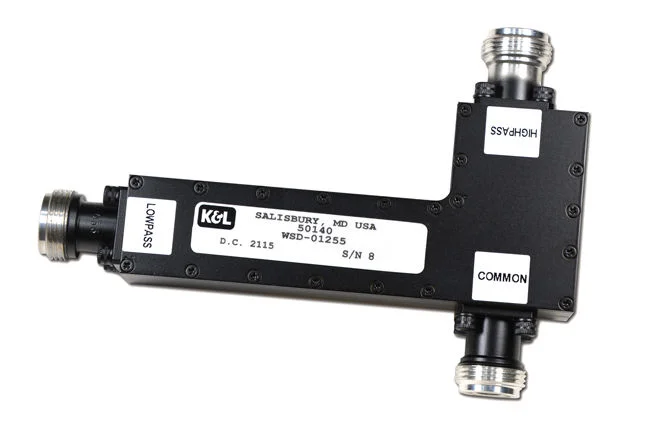

MPG_KLM_FL_MP_FIX_DX_MUL_WSD-01255

Overview

Product SKU:

Product Name: SPCL-00739

Separates the Carrier below 4500 MHz from its Harmonics up to 16000 MHz

Prevents the Carrier from Reflecting to the D.U.T or Entering the Spectrum Analyzer

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defence Communications

Applications

Product Specifications

Lowpass Port
 Passband DC-4500 MHz
 Insertion Loss 2.0 dB max.
 Return Loss DC­4500 MHz: -12 dB min
 Rejection
LP port to Common port, Highpass Port Terminated
6000-16000 MHz: -90 dB (-80 dB typ.)
 Power Handling
Sea level at ambient temperature,
 COM port 50 Ohm loaded
125 W CW max. 500 W Peak
PIM: 2 Tones (+43) dBm each presented at common
 port in lowpass filter region
 Harmonics: 1 Tone (+43) dBm presented at common
 port in lowpass filter region, measured at the highpass port
 Base part number: -110 dBc
 Base part number: (-1): -130 dBc
 Base part number: (-2): -156 dBc
 Base part number: (-3): -161 dBc
Highpass Port
Passband 6000-16000 MHz
Insertion Loss 2.0 dB max.
Return Loss -10 dB min.
Rejection
DC-4500 MHz: -90 dB. (-80 dB typ.)
Power Handling
Sea level at ambient temperature,
COM port 50 Ohm loaded
50 W CW max
Mechanical Specifications
RF Connectors  N-Type (F)
