WSD-00802-3

Overview

Product SKU:

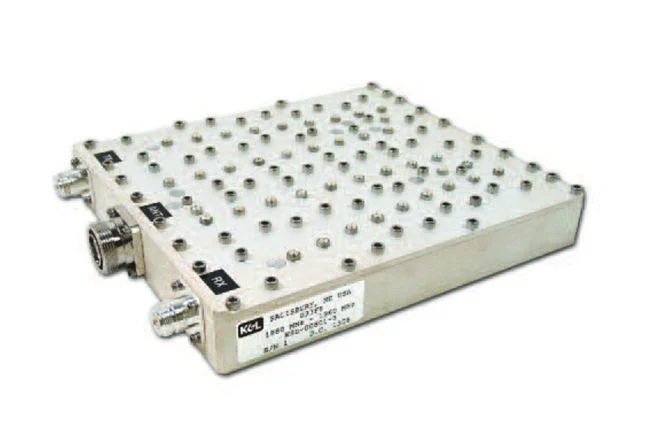

Product Name: WSD-00802-3

Routes Band 3 Signals in Split/Combine Mode

DAS Networks for Indoor/Outdoor Applications

Test Equipment

Base Stations

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defence Communications

Product Specifications

(Passband) Lowband - RX	1710-1785
Highband - TX	1805-1880
(Insertion loss) Antenna - RX	1.75 dB
Antenna - TX	2.00 dB
Isolation RX-TX	100 dB
Return Loss	-17 dB
Impedance	50 Ω
Input Power	100 W
Third Order Intermodulation Product (2 x 20 W tones input to the antenna port measured in the reflective mode)	161 dBc, 7/16 Connector
Temperature Range	-20°C to +50°C
Connectors	7/16 Connector on Antenna Port
Application	Indoor (Sealed Outdoor Units Available)
Mounting	4 Mounting holes, 8 - 32 (Custom Mounting Available)
Dimensions (W x H x D)	9.05” x 8.35” x 2.57”
