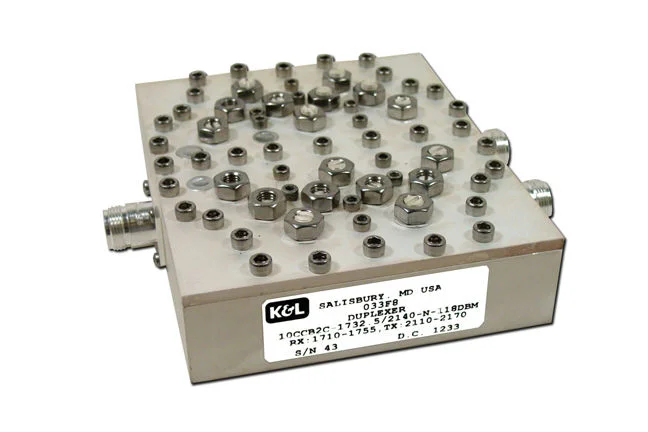

Product Name : WSD-00731
Routes Band 10 Signals in Split/Combine Mode
DAS Networks for Indoor/Outdoor Applications
Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.
|Passband||Insertion loss||Isolation RX-TX||Return Loss||Impedance||Input Power|
|Lowband - RX||Highband - TX||Antenna - TX||Antenna - RX||70 dB||-20 dB||50 Ω||100W|
|1710-1755||2110-2170||0.5 dB||0.5 dB|
|Third Order Intermodulation Product: (2 x 20 W tones input to the antenna port measured in the reflective mode)||Temperature Range||Connectors||Application||Mounting||Dimensions|
(W x H x D)
|-20°C to +50°C||N or 7/16||Indoor (Sealed Outdoor Units Available)||4 Mounting holes, 6-32|
(Custom Mounting Available)
|4.59” x 5.56” x 1.59”|
|156 dBc, N-Type Connector|
161 dBc, 7/16 Connector
Since 1971, we’ve aggressively invested in innovation to deliver interference mitigation products built to even the most exacting specifications. By taking control of the internal design and production processes, K&L Microwave can work collaboratively with customers, employing our high-quality standards and industry expertise to develop custom solutions across a full line of applications.
Our line of filters, duplexer, and subassemblies includes multiple topologies, including Ceramic, Lumped Element, Cavity, Waveguide, and Tunable Filters.
