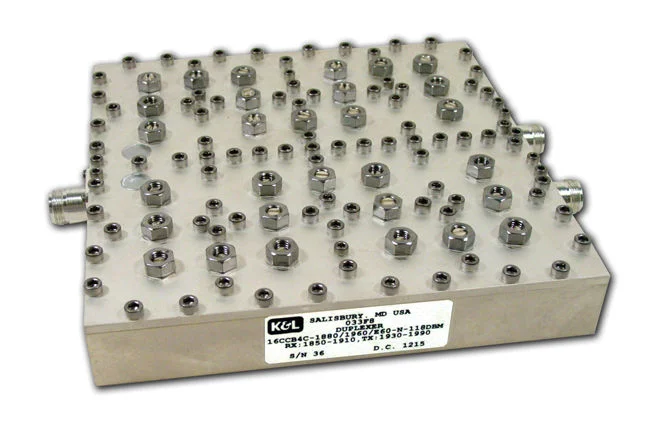

Product Name : WSD-00730
Routes Band 2 Signals in Split/Combine Mode
DAS Networks for Indoor/Outdoor Applications
Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.
|Passband||Insertion loss||Isolation RX-TX||Return Loss||Impedance||Input Power|
|Lowband - RX||Highband - TX||Antenna - TX||Antenna - RX||70 dB||-20 dB||50 Ω||100W|
|1850-1910||1930-1990||0.85 dB||0.85 dB|
|Third Order Intermodulation Product: (2 x 20 W tones input to the antenna port measured in the reflective mode)||Temperature Range||Connectors||Application||Mounting||Dimensions|
(W x H x D)
|-20°C to +50°C||N or 7/16||Indoor (Sealed Outdoor Units Available)||4 Mounting holes, 6-32|
(Custom Mounting Available)
|7.62” x 7.68” x 1.50”|
|156 dBc, N-Type Connector|
161 dBc, 7/16 Connector
