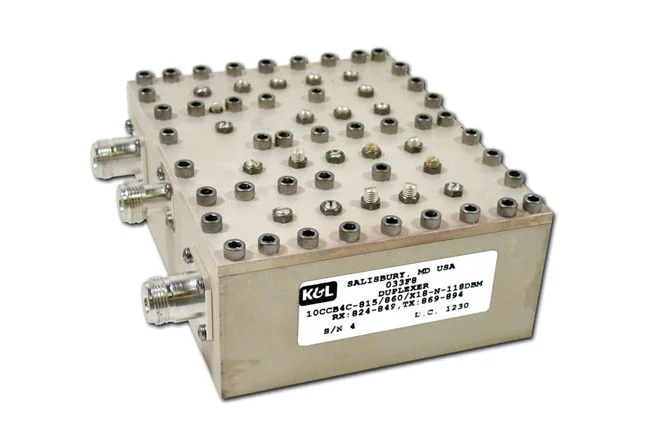

WSD-00728

Low-PIM, High Power TX/RX Duplexer

Overview

Product SKU ID :

Product Name : WSD-00728

Routes Band 5 Signals in Split/Combine Mode

DAS Networks for Indoor/Outdoor Applications

Test Equipment

Base Stations

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defense Communications

Product Specifications

Passband		Insertion loss		Isolation RX-TX	Return Loss	Impedance
Lowband - RX	Highband - TX	Antenna - TX	Antenna - RX	70 dB	-20 dB	50 Ω
824 - 849 MHz	869 - 894 MHz	0.85 dB	0.85 dB

Input Power	Third Order Intermodulation Product: (2 x 20 W tones input to the antenna port measured in the reflective mode)	Temperature Range	Connectors	Application	Mounting	Dimensions (W x H x D)
100W		-20°C to +50°C	N or 7/16	Indoor (Sealed Outdoor Units Available)	4 Mounting holes, 8 - 32 (Custom Mounting Available)	5.68” x 4.53” x 2.38”
	156 dBc, N-Type Connector 161 dBc, 7/16 Connector
