WSD-00403

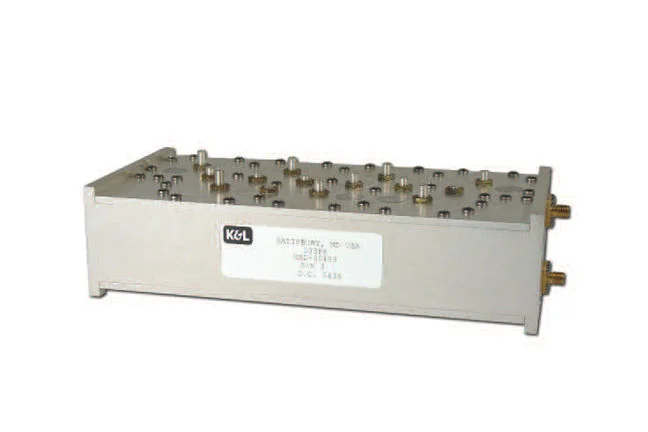

MMDS Duplexer (Rx 2500-2566 & Tx 2620-2686 MHz)

Overview

Product SKU ID :

Product Name : WSD-00403

Full Coverage of MMDS Spectrum

Low Loss - 0.6 dB Maximum

High Rejection / Isolation - 80 dB Minimum

High Transmit Power Handling

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defense Communications

Product Specifications

Receive Passband	Transmit Passband	Passband Insertion Loss	Passband Ripple	Passband Return Loss	Antenna-to-Rx Rejection		Transmit-to-Antenna Rejection		Passband-to-Passband Isolation
					DC to 2434 MHz	2620 to 5500 MHz	DC to 2566 MHz	2752 to 5500 MHz
2500 to 2566 MHz	2620 to 2686 MHz	0.60 dB max.	0.40 dB p-p max.	15 dB min.	-80 dBc min.	-80 dBc min.	-80 dBc min.	-80 dBc min.	80 dB min.

Transmit Passband Power Handling		Characteristic Impedance	Dimensions	Connectors	Operating Temperature Range	Operating Humidity	Storage Temperature Range	Finish
CW	Peak Instantaneous
50 Watts	1000 Watts	50 ohms (in passbands)	7.72” L x 3.75” W x 2.85” H (excludes connectors)	SMA-F, Gold plated	0° C to +70° C	0 to 90%, Non-condensing	-40° C to +85° C	Silver plated finish
