WSD-00392

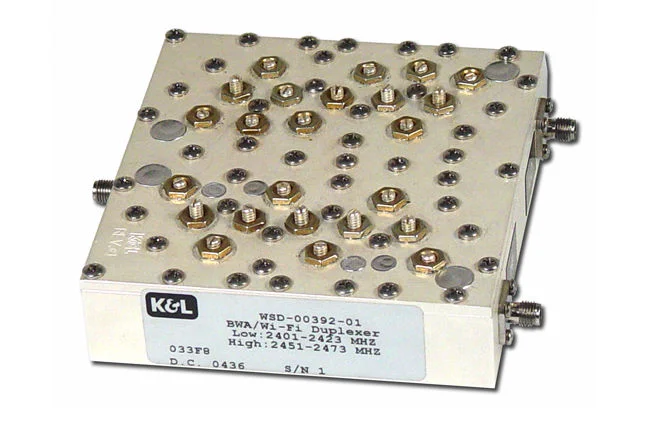

BWA/Wi-Fi Duplexers (Factory Tunable 2300-2900 MHz)

Overview

Product SKU ID :
Product Name : WSD-00392
Customer Specified Factory Tuned Center Frequencies
Low Loss - 1 dB Typical
High Isolation - 65 dB Typical
Cavity Filter Performance in Very Small Size

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

DefenseCommunications

PRODUCT SPECIFICATIONS

Low Channel Frequency	High Channel Frequency	Channel Bandwidth	Fc-to-Fc Separation	Channel Insertion Loss	Channel Amplitude Flatness	Passband Return Loss	Channel Rejection	Isolation
2300 to 2900 MHz	2300 to 2900 MHz	22 MHz min.	50 MHz min.	1.5 dB max.	1.0 dB p-p max.	17.7 dB min.	60 dB min.; Fc +/- 90 MHz	60 dB min.; DC to 6000 MHz

Passband Power Handling		Characteristic Impedance	Dimensions (excludes connectors)	Connectors	Operating Temperature		Storage Temperature
CW	Peak Instantaneous	Characteristic Impedance	Dimensions (excludes connectors)	Connectors	Range	Operating Humidity	Range	Finish
10 Watts	200 Watts	50 ohms	4.0"D x 4.2"W x 1.25"H	SMA-F	-20°C to +70°C	0 to 90%, Non-condensing	-40°C to +85°C	Silver plated finish
