WSD-00359 - SMR & ESMR / Public Safety Duplexer

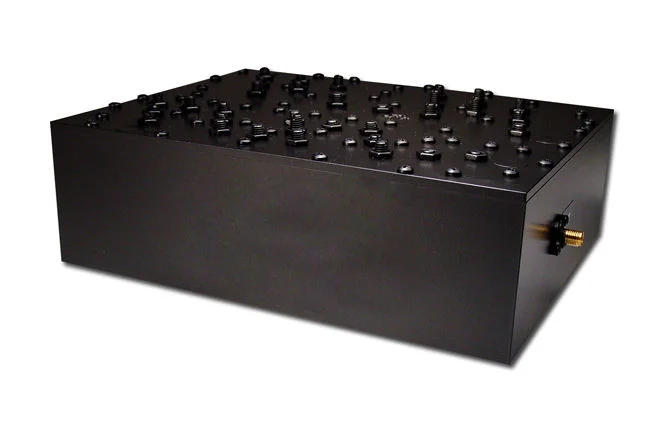

MPG_KLM_FL_MP_FIX_DX_MUL_WSD-00359

Overview

Product SKU ID :

Product Name : WSD-00359

18 MHz Passbands: 806-824 & 851-869 MHz

Highly Selective Bandpass Response for Both Channels

High Isolation

Compact Dimensions: 7.5" x 6.0" x 2.75" (excluding connectors)

iDEN or Public Safety Micro or Repeaters

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defense Communications

MPG_Connecting_Protecting

Product Specifications

WSD-00357 Passbands WSD-00359 Passbands Passband Insertion Loss Passband Amplitude Flatness Passband Return Loss
LOW HIGH LOW HIGH WSD-00357 WSD-00359 WSD-00357 WSD-00359
806 - 821 MHz 851 - 866 MHz 806 - 824 MHz 851 - 869 MHz 2.0 dB max 4.0 dB max 1.4 dB p-p max. 3.5 dB p-p max. 15 dB min.
