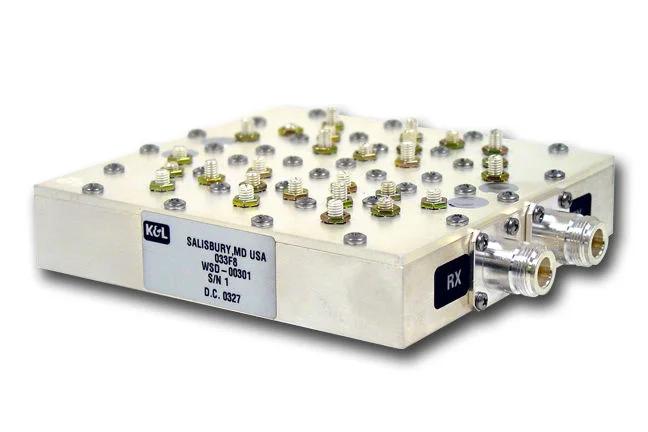

WSD-00327

UMTS Duplexer (Rx 1920-1980 & Tx 2110-2170 MHz)

Overview

Product SKU ID :

Product Name : WSD-00327

Low Insertion Loss: 0.8 dB Max

Highly Selective / High Isolation: 85 dB Min

Passband Group Delay Variation: 40 nS Max

Intermodulation Performance: -120 dBm Max

Compact Dimensions: 5.49” x 5.15” x 1.5”

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defense Communications

Product Specifications Section

Passbands

Passband Insertion Loss

Passband Amplitude Flatness

Passband Group Delay Variation

Passband Return Loss

Antenna to Receive Port Rejection

Transmit to Antenna Port Rejection

Receive

Transmit

Receive

Transmit

DC to 1880 MHz

1880 to 1900 MHz

2000 to 2110 MHz

2110 to 2170 MHz

2170 to 5500 MHz

DC to 1920 MHz

1920 to 1980 MHz

1980 to 2040 MHz

2040 to 2100 MHz

2180 to 4220 MHz

4220 to 4340 MHz

1920 to 1980 MHz

2110 to 2170 MHz

0.80 dB max.

0.50 dB max.

40 nS max.

15 dB min.

60 dB min.

25 dB min.

85 dB min.

50 dB min.

60 dB min.

85 dB min.

60 dB min.

15 dB min.

50 dB min

Passband to Passband Isolation		Transmit Passband Power Handling		Intermodulation	Dimensions (excluding connectors)	Connectors			Operating Temperature	Storage Temperature	Finish
1920 to 1980 MHz	2110 to 2170 MHz	CW	Peak Instantaneous			WSD-00327	WSD-00301
85 dB min.	85 dB min.	100 Watts	4000 Watts	-120 dBm max. in Receive Passband w/two +44 dBm carriers applied in Transmit Passband with Antenna Port terminated w/Low IMD load.	5.49” D x 5.15” W x 1.5” H (max.)	N-F	Antenna Port	Receive & Transmit Ports	-20°C to +70°C	-40°C to +85°C	Bright Silve
							QDS-F	N-F
