WSD-00305

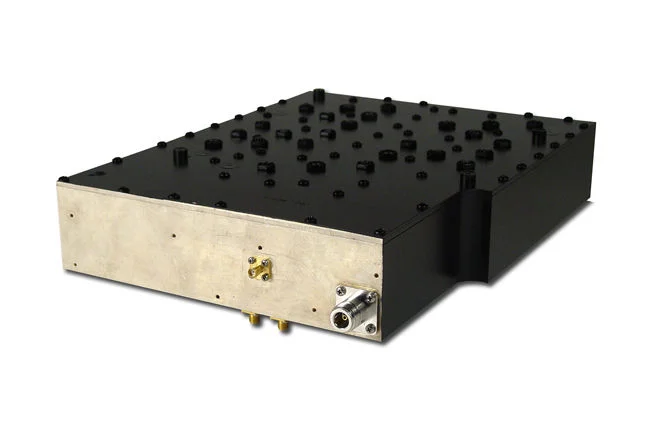

Tetra Band Duplexer (Rx 453-457.5 & Tx 463-467.5 MHz)

Overview

High Power Rating
Low Insertion Loss
High Rejection Levels
Excellent Return Loss
30 dB Harmonic Suppression to 6 GHz

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

DefenseCommunications

PRODUCT SPECIFICATIONS

Receive Path				Transmit Path
Passband	Insertion Loss (Inband)	Return Loss	Rejection	Passband	Insertion Loss (Inband)	Return Loss	Rejection
453 to 457.5 Mhz	1.5 dB max.	19 dB	80 dB @ 463 to 467.5 MHz	463 to 467.5 MHz	1.5 dB max.	19 dB	95 dB @ 453 to 457.5 MHz

Power	Peak Power	Operating Temperature	Storage Temperature	Dimensions
100 watts CW	1000 watts	-5°C to +60°C	-30°C to +70°C	12.377” x 9.578” x 2.56”
