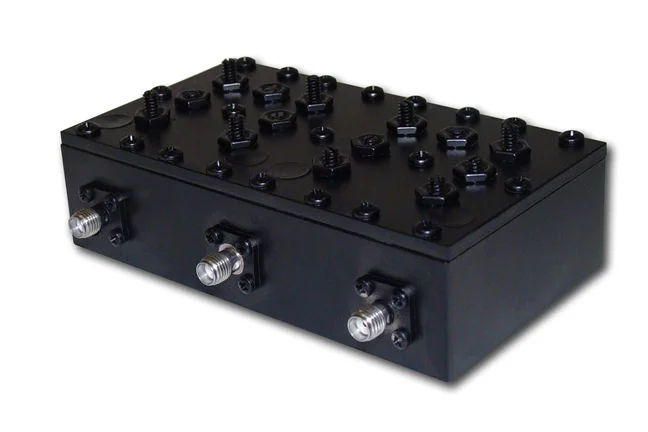

UMTS Duplexer (Rx 1920-1980 & Tx 2110-2170 MHz)

Overview

Product SKU ID :

Product Name : WSD-00292

Full Band UMTS Duplexer

Low Insertion Loss: < 0.5 dB Typical

High Isolation: 60 dB minimum

Small Size: 108mm x 60mm x 38.1mm

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defense Communications

Product Specifications

Passbands		Passband Insertion loss	Passband Return loss	Antenna to Receive Rejection			Transmit to Antenna Rejection		Passband to Passband Isolation
Receive	Transmit
				DC to 1720 MHz	2110 to 2170MHz	2170 to 4340 MHz	DC to 1980 MHz	2365 to 4340 MHz
1920 to 1980 MHz	2110 to 2170 MHz	0.6 dB Maximum	15 dB Minimum	50 dB Minimum	60 dB Minimum	50 dB Minimum	60 dB Minimum	50 dB Minimum	60 dB Minimum

Transmit Passband Power Handling		Dimensions	Connectors	Operating Humidity	Operating Temperature	Storage Temperature	Finish
CW	Peak Instantaneous
30 Watts	400 Watts	108mm W x 60mm D x 38.1mm H (Excluding Connectors) (4,25 x 2.36 x 1.5)	SMA-F	0 to 90% non-condensing	-20 to +70 C	-40 + 85 C	Black Paint, Water Based
