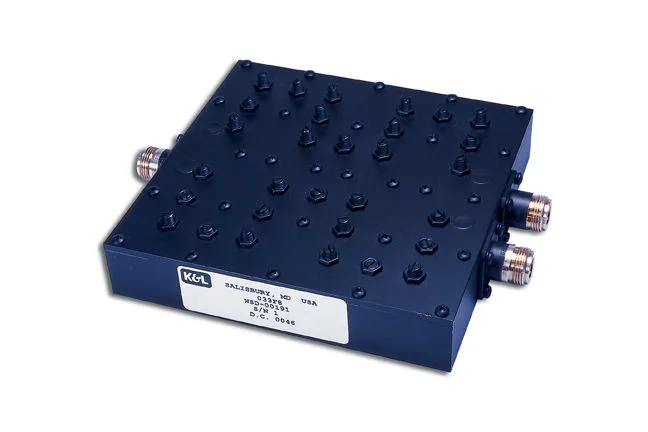

WSD-00191

UMTS Band Duplexer (Rx 1920-1980 & Tx 2110-2170 MHz)1

Overview

Product SKU ID :

Product Name : WSD-00191

75 dB Minimum Isolation

Low Insertion Loss - 0.8 dB typical

High Transmit Power Handling

Picocell, Microcell, and Macrocell Base Station Installations

Handset or Equipment Test Systems

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defense Communications

Product Specifications

Passbands		Passband Insertion Loss	Passband Return Loss	Antenna-to-Receive Rejection			Transmit-to-Antenna Rejection			Channel-to-Channel Isolation
Receive	Transmit	Passband Insertion Loss	Passband Return Loss	DC-1900 MHz	2110-4000 MHz	4000-6500 MHz	DC-2090 MHz	2190-4000 MHz	4000-6500 MHz	Channel-to-Channel Isolation
1920–1980 MHz	2110-2170 MHz	1.0 dB max.	15 dB min.	60 dB min.	50 dB min.	25 dB min.	60 dB min.	50 dB min.	55 dB min.	75 dB min.

Maximum Transmit Power Handling		Operating Temperature	Storage Temperature	Operating Humidity	Dimensions	Connectors
CW	Peak Instantaneous
50 watts	1000 watts	-20 to +70°C	-40 to +85°C	0 to 90%, relative, non-condensing	5.62”L x 5.5”W x 1.5”H (excluding connectors) [142.7 x 139.7 x 38.1mm]	N-F
