WSD-00184

Overview

Product SKU ID:

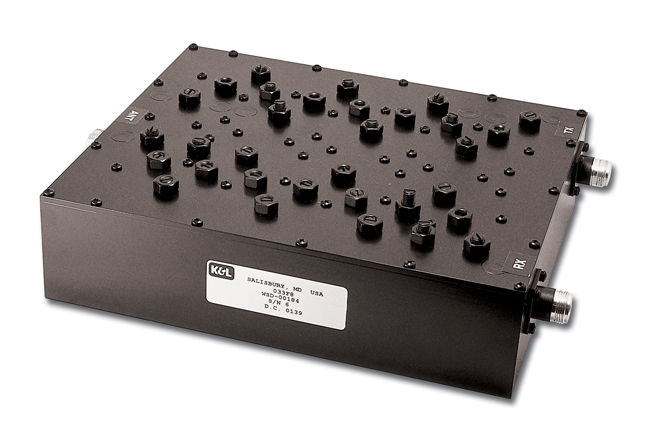

Product Name : WSD-00184

High Isolation (75 dB min) / Low Insertion Loss (1.25 dB max)

High Power Handling (50 Watts CW)

Macro or Micro EGSM Base Stations

EGSM Repeaters and Systems

Base Station or Handset EGSM Test Systems

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Diplexers are applicable for multiple markets, including defense, EW, communications, SATCOM, and automated test equipment.

Markets

Defense Aerospace Communications GPS

Product Specifications

Passbands		Passband Insertion Loss	Antenna to Receive Rejection			Antenna to Receive Rejection		Passband to Passband Isolation
Receive	Transmit	1.25 dB maximum	DC-845 MHz	925-2000 MHz	2000-2880 MHz	DC-915 MHz	1050-2000 MHz	75 dB minimum
880-915 MHz	925-960 MHz	1.25 dB maximum	50 dB minimum	75 dB minimum	30 dB minimum	75 dB minimum	75 dB minimum	75 dB minimum

Maximum Transmit Power Handling		Passband Return Loss	Operating Temperature	Storage Temperature	Operating Humidity	Dimensions	Connectors
CW	Peak Instantaneous	15 dB minimum	0 to +55°C	-40 to +85°C	0 to 90%, relative, non-condensing	9.43”L x 7.93”W x 3.0”H (excluding connectors) [239.5 x 201.4 x 76.2mm]	N-F
50 watts	100 watts
