WSD-00179

Overview

Product SKU ID:

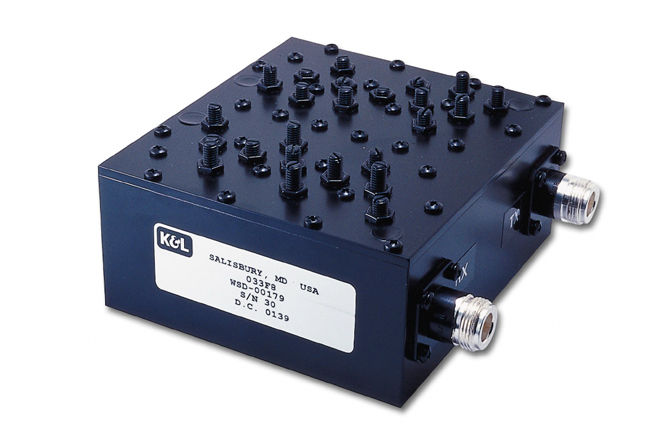

Product Name :WSD-00179

70 dB Minimum Isolation

Passbands: Transmit 832-870 MHz, Receive 887-925 MHz

Low Insertion Loss / Small Size

Ideal for Picocell or Microcell Base Station Installations

Handset or Equipment Test Systems

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Diplexers are applicable for multiple markets, including defense, EW, communications, SATCOM, and automated test equipment.

Markets

Defense Aerospace Communications GPS

Product Specifications

Passbands		Passband Insertion Loss	Transmit to Antenna Rejection			Antenna to Receive Rejection		Channel to Channel Isolation
Transmit	Receive	1.5 dB maximum	DC-810 MHz	887-925 MHz	925-2775 MHz	DC-870 MHz	1000-2775 MHz	70 dB minimum
832-870 MHz	887-925 MHz	1.5 dB maximum	20 dB minimum	70 dB minimum	50 dB minimum	70 dB minimum	50 dB minimum	70 dB minimum

Tx Passband Power Handling		Passband Return Loss	Operating Temperature	Storage Temperature	Operating Humidity	Dimensions	Connectors
CW	Peak Instantaneous	15 dB minimum	0 to +50°C	-40 to +85°C	0 to 90%, relative,non-condensing	4.65”L x 4.20”W x 2.75”H (excluding connectors) [118.1 x 106.7 x 69.9mm]	N-F
25 watts	500 watts
