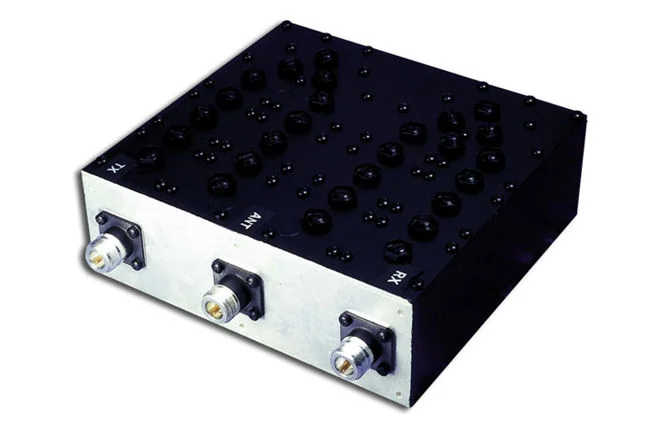

GSM Duplexer (Rx 890-915 & Tx 935-960 MHz)

Overview

Product SKU ID :

Product Name : WSD-00126

High Isolation - 85 dB minimum

Low Insertion Loss - 0.7 dB typical

High Return Loss - 17 dB typical

AVAILABLE FROM STOCK

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defense Communications

Product Specifications

Passbands		Passband Insertion Loss	Passband Ripple	Antenna to Receive Rejection			Transmit to Antenna Rejection			Channel to Channel Isolation
Receive	Transmit			DC-850 MHz	935-960 MHz	960-2670 MHz	DC-890 MHz	890-915 MHz	1000-2880 MHz
890-915 MHz	935-960 MHz	1.0 dB maximum	0.4 dB p-p maximum	60 dB minimum	85 dB minimum	50 dB minimum	60 dB minimum	85 dB minimum	50 dB minimum	85 dB minimum

Maximum Transmit Power Handling		Passband Return Loss	Operating Temperature	Storage Temperature	Operating Humidity	Dimensions (excluding connectors)	Connectors
CW	Peak Instantaneous	17 dB minimum	0 to +50°C	-40 to +85°C	0 to 90%, non-condensing	6.75”W x 6.32”D x 2.75”H [171.5mm x 160.6mm x 70mm]	N-F
45 watts	450 watts
