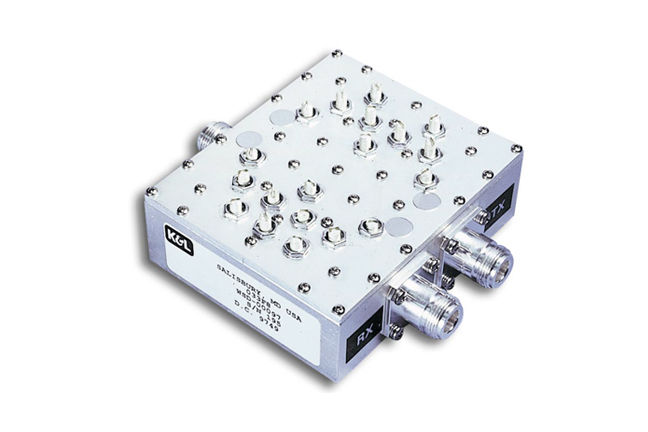

WSD-00097

Overview

Product SKU ID:

Product Name : WSD-00097

Passbands: Receive 1750-1780 MHz, Transmit 1840-1870 MHz

High Isolation - 75 dB minimum

Low Insertion Loss - 0.5 dB typical

Small Compact Size - <28 cubic inches

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Diplexers are applicable for multiple markets, including defense, EW, communications, SATCOM, and automated test equipment.

Markets

Defense Aerospace Communications GPS

Product Specifications

Passbands		Passband Insertion Loss	Antenna to Receive Rejection		Transmit to Antenna Rejection		Channel to Channel Isolation
Receive	Transmit	1.0 dB maximum	DC-1685 MHz	1840-3740 MHz	DC-1780 MHz	2040-3740 MHz	75 dB minimum
1750-1780 MHz	1840-1870 MHz	1.0 dB maximum	35 dB minimum	75 dB minimum	75 dB minimum	60 dB minimum	75 dB minimum

Maximum Transmit Power Handling		Passband Return Loss	Operating Temperature	Non-operating Temperature	Operating Humidity	Dimensions	Connectors
CW	Peak Instantaneous	15 dB minimum	-25 to +70°C	-40 to +85°C	0 to 90%, non-condensing	4.10”W x 3.41”D x 2.0”H (excluding connectors) [104.1 x 86.6 x 50.8mm]	N-F
50 watts	800 watts
