WSD-00053

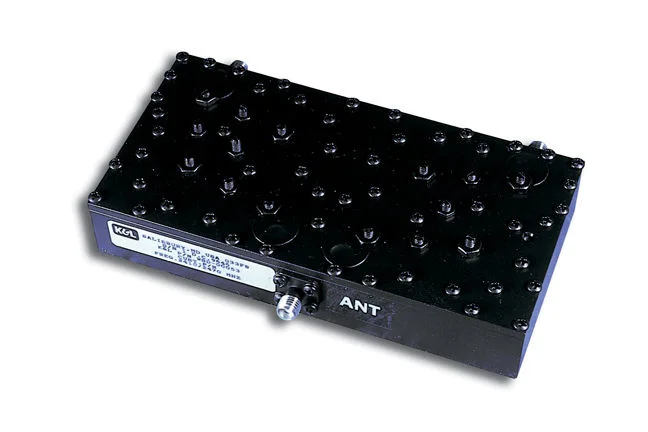

WLL Duplexer, 2.4 GHz (Rx 2400-2420 & Tx 2460-2480 MHz)

Overview

55 dB Minimum Isolation
Low Insertion Loss - 0.7 dB typical
High Return Loss - 18 dB typical
Small, Compact Size

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

DefenseCommunications

PRODUCT SPECIFICATIONS

Passbands

Passband Insertion Loss

Antenna to Receive Rejection

Transmit to Antenna Rejection

Channel to Channel Isolation

Passband Return Loss

Maximum Transmit Power Handling

Operating Temperature

Storage Temperature

Operating Humidity

Dimensions (excluding connectors)

Connectors

Receive

Transmit

DC-2300 MHz

2460-6000 MHz

DC-2420 MHz

2580-6000 MHz

2400-2420 MHz

2460-2480 MHz

1.0 dB maximum

50 dB minimum

55 dB minimum

50 dB minimum

55 dB minimum

15 dB minimum

10 watts CW

0 to +50°C

-40 to +85°C

0 to 90%, non-condensing

2.50”W x 5.00”D x 1.25”H [63.5 x 127 x 31.8mm]

SMA-F
