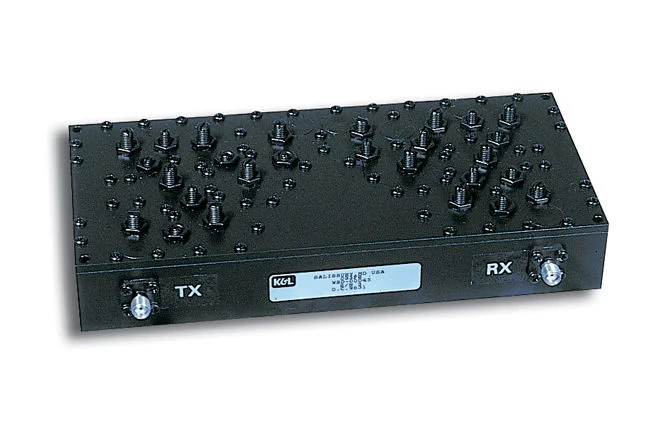

WSD-00045 - PCS Fullband Duplexer (Rx 1850-1910 & Tx 1930-1990 MHz)

Overview

Product SKU ID :

Product Name : WSD-00045

62 dB Minimum Isolation

Low Insertion Loss - 0.8 dB typical

High Return Loss - 18 dB typical

Small, High Performance Package

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defense Communications

Product Specifications

Passbands		Passband Insertion Loss	Passband Flatness	Antenna to Receive Rejection					Transmit to Antenna Rejection
Receive	Transmit	Passband Insertion Loss	Passband Flatness	DC-1747.5 MHz	1790-1825 MHz	1930-2332.5 MHz	2332.5-2387.5 MHz	2387.5-6000 MHz 52	DC-1910 MHz	2092.5-6000 MHz
1850-1910 MHz	1930-1990 MHz	1.5 dB maximum	1.0 dB P-P maximum	52 dB minimum	10 dB minimum	62 dB minimum	70 dB minimum	dB minimum	62 dB minimum	52 dB minimum

Channel to Channel Isolation	Maximum Transmit Power Handling	Passband Return Loss	Operating Temperature	Storage Temperature	Operating Humidity	Dimensions	Connectors
62 dB minimum	25 watts CW	15 dB minimum	-20 to +70°C	-40 to +85°C	Up to 90%, non-condensing	7.00”W x 3.25”D x 1.5”H (excluding connectors) [177.8 x 82.6 x 38.1mm]	SMA-F
