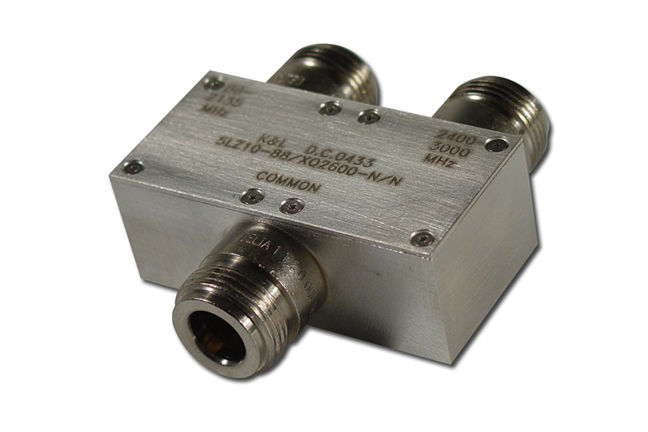

WSD-00025

Overview

Product SKU ID:

Product Name : 5LZ10-00025

Small Compact Size - Low Cost

Low-Loss Design (1.2dB Max) Eliminates Hybrid Losses and Reduces Noise Figure

In-Building or Tunnel Radio Distribution Systems

Replacement of High-Loss Hybrid Combiner/Splitters

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Diplexers are applicable for multiple markets, including defense, EW, communications, SATCOM, and automated test equipment.

Markets

Defense Aerospace Communications GPS

Product Specifications

Passbands		Passband Insertion Loss	Antenna to Receive Rejection		Antenna to Receive Rejection		Channel to Channel Isolation
Receive	Transmit	1.0 dB maximum	DC-779 MHz	869-2000 MHz	DC-849 MHz	939-2682 MHz	50 dB minimum
824-849 MHz	869-894 MHz	1.0 dB maximum	50 dB minimum	50 dB minimum	50 dB minimum	50 dB minimum	50 dB minimum

Maximum Transmit Power Handling		Passband Return Loss	Operating Temperature	Storage Temperature	Operating Humidity	Dimensions	Connectors		WSD-00022		WSD-00028
CW	Peak Instantaneous	14 dB minimum	0 to +50°C	-40 to +85°C	0 to 90%, relative, non-condensing	Dimensions : 7.14”W x 5.98”D x 1.16”H (excluding connectors) [181.3 x 151.9 x 29.5mm]	Antenna/Tx Ports	Rx Port SMA	Antenna	Tx/Rx Ports	N-F
20 watts	200 watts						N-F	F	N-F	SMA-F
