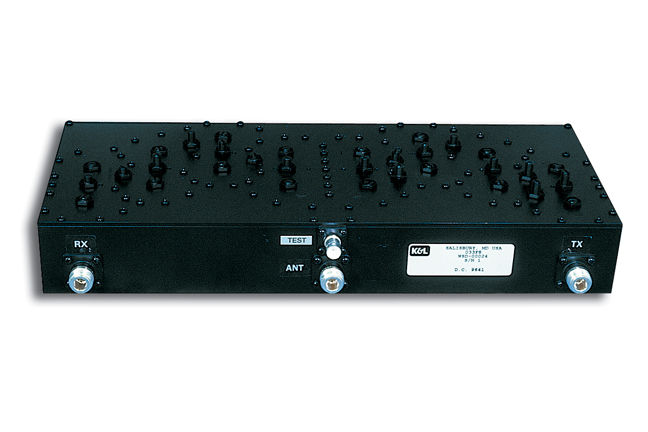

WSD-00024

Overview

Product SKU ID:

Product Name : WSD-00024

High Power Handling

110 dB Minimum Isolation

Optional Rack Mount Assembly

Fits into 2U Rack Space

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Diplexers are applicable for multiple markets, including defense, EW, communications, SATCOM, and automated test equipment.

Markets

Defense Aerospace Communications GPS

Product Specifications

Passbands		Passband Insertion Loss	Antenna to Receive Rejection			Transmit to Antenna Rejection:		Channel to Channel Isolation
Receive	Transmit	1.0 dB maximum	DC-750 MHz	869-894 MHz	894-2000 MHz	DC-849 MHz	968-2000 MHz	110 dB minimum
824-849 MHz	869-894 MHz	1.0 dB maximum	75 dB minimum	50 dB minimum	75 dB minimum	110 dB minimum	75 dB minimum	110 dB minimum

Maximum Transmit Power Handling		Passband Return Loss	Antenna Port Coupling	Operating Temperature	Storage Temperature	Operating Humidity	Dimensions	Connectors
CW	Peak Instantaneous	14 dB minimum	-50 +/- 3 dB non-directional	0 to +50°C	-40 to +85°C	0 to 90%, relative, non-condensing	D15.05”W x 6.3”D x 3.25”H (excluding connectors) [382.3 x 160 x 82.6mm]	Antenna, Rx and Tx Ports	Coupled Port
500 watts	10,000 watts							N-F	N-F
