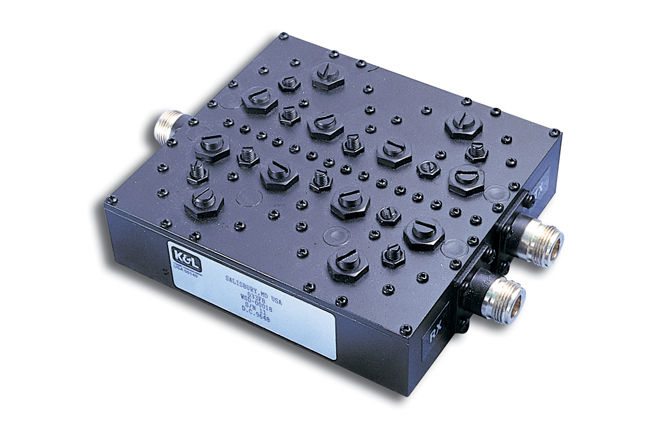

WSD-00018

Overview

Product SKU ID:

Product Name : WSD-00097

Low Insertion Loss; <0.6 dB typical

Compact Design

Ideal for Microcell Requirements

50 dB Minimum Isolation

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

DefenseCommunications

Product Specifications

Passbands		Passband Insertion Loss	Antenna to Receive Rejection		Transmit to Antenna Rejection		Channel to Channel Isolation
Receive	Transmit	1.0 dB maximum	DC-1575 MHz	1805-4000 MHz	DC-1785 MHz	2030-4000 MHz	50 dB minimum
1710-1785 MHz	1805-1880 MHz	1.0 dB maximum	50 dB minimum	50 dB minimum	50 dB minimum	50 dB minimum	50 dB minimum

Maximum Transmit Power Handling		Passband Return Loss	Operating Temperature	Non-operating Temperature	Operating Humidity	Dimensions	Connectors
CW	Peak Instantaneous	14 dB minimum	0 to +50°C	-40 to +85°C	0 to 90%(non-condensing)	5\t00”W x 4\t64”D x 2\t0”H (excluding connectors) [127 x 117\t9 x 50\t8mm]	N-F
20 watts	200 watts
