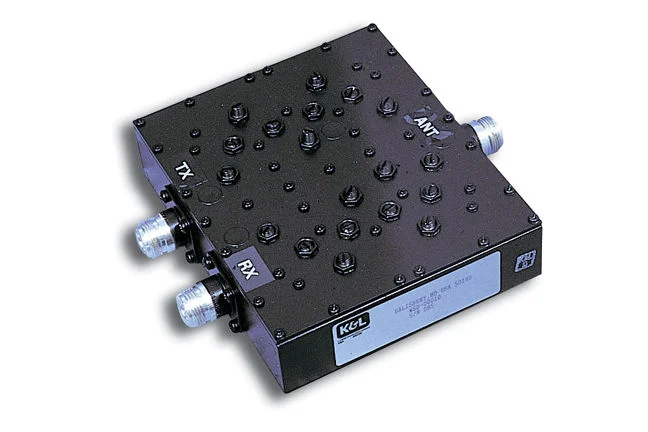

WSD-00010

PCS Fullband Duplexer (Rx 1850-1910 & Tx 1930-1990 MHz)

Overview

Product SKU ID :

Product Name : WSD-00010

40 dB Minimum Isolation

Very Low Insertion Loss - 0.5 dB Maximum

Low Profile, Compact Housing

Ideal for Microcell Requirements

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defense Communications

Product Specifications

Passbands		Passband Insertion Loss	Antenna to Receive Rejection			Transmit to Antenna Rejection		Channel to Channel Isolation	Maximum Transmit Power Handling
Receive	Transmit	Passband Insertion Loss	DC-1770 MHz	1930-1990 MHz	1990-5790 MHz	DC-1910 MHz	3860-5970 MHz	Channel to Channel Isolation	CW	Peak Instantaneous
1850-1910 MHz	1930-1990 MHz	0.5 dB maximum	30 dB minimum	40 dB minimum	30 dB minimum	40 dB minimum	30 dB minimum	40 dB minimum	200 watts	2000 watts

Passband Return Loss	Operating Temperature	Storage Temperature	Operating Humidity	Dimensions(excluding connectors)	Connectors
					N-F	WSD-00040	WSD-00044
15 dB minimum	-25 to +70°C	-40 to +85°C	Up to 90%, non-condensing	5.12”W x 4.33”D x 1.5”H[130 x 110 x 38.1mm]		SMA-F	Antenna	Tx/Rx Ports
							N-M	N-F
