WSD-00001

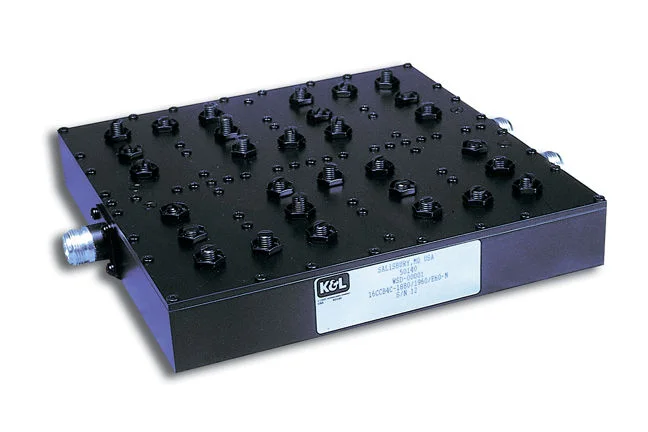

PCS Fullband Duplexer (Rx 1850-1910 & Tx 1930-1990 MHz)

Overview

Product SKU ID :

Product Name : WSD-00001

75 dB Minimum Isolation

Low Insertion Loss - 0.7 dB typical

Full Band, Highly Selective Performance for both Transmit and Receive Channels

AVAILABLE FROM STOCK

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defense Communications

Product Specifications

Passbands		Passband Insertion Loss	Antenna to Receive Rejection			Transmit to Antenna Rejection		Channel to Channel Isolation
Receive	Transmit	Passband Insertion Loss	DC-1830 MH	1930-1990 MHz	1990-3980 MHz	DC-1910 MHz	2010-3980 MHz	Channel to Channel Isolation
1850-1910 MHz	1930-1990 MHz	1.0 dB maximum	60 dB minimum	75 dB minimum	55 dB minimum	75 dB minimum	55 dB minimum	75 dB minimum

Maximum Transmit Power Handling		Passband Return Loss	Operating Temperature	Storage Temperature	Operating Humidity	Dimensions	Connectors
CW	Peak Instantaneous
50 watts	800 watts	15 dB minimum	-25 to +70°C	-40 to +85°C	Up to 90%, non-condensing	7.25”W x 7.25”D x 2.0”H (excluding connectors) [184.2 x 184.2 x 50.8mm]	N-F
