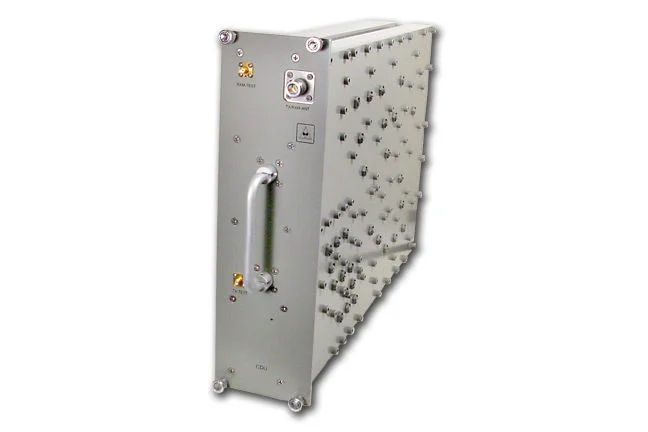

WSA-00136 - Tetra 450 MHz Combiner Duplexer Assembly

Overview

Product SKU ID :

Product Name : WSA-00136

Low Insertion Loss (<2.2dB)

Excellent Filtering Characteristic

Low PIM (-96~-125dbm/30KHz @Rx Band)

High Liability

High Power Handling (80CW)

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defense Communications

Product Specifications

Transmit:

Frequency Range Tx1	Frequency Range Tx2	Return Loss TX Band	Insertion Loss TX Band	Input Power	Attenuation at Rx freq 453.35 to 457.1 MHz	Isolation
463.35 to 464.59 MHz	465.86 to 467.09 MHz	18 dB	</- 2.2 dB	80 w / Ch, 1200 w Peak	>100 dB	>38 dB

Receive:

Frequency	Insertion Loss	Test Port Coupler	Return Loss	Attenuation	Isolation
453.35 to 457.1 MHz	< 2.0 dB	-35 dB +/- 0.5 dB	> 15 dB	75 dB @ 446 MHz 90 dB @ 463.35 and 800 MHz	90 dB @ 463.35 to 467.1 MHz 100 dB @ 453.35 to 457.1 MHz
