SPCL-00802

Overview

Product SKU:

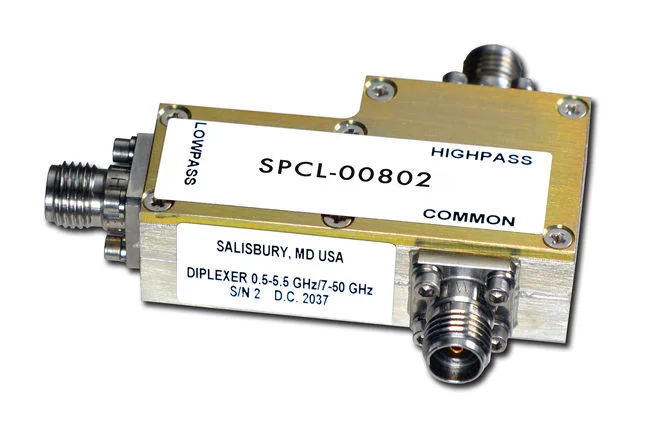

Product Name: SPCL-00802

Separates the Carrier below 5 GHz from its Harmonics up to 50 GHz

Prevents the Carrier from Reflecting to the D.U.T or Entering the Spectrum Analyzer

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defence Communications

Product Specifications

Lowpass Port
Passband	DC-5500 MHz
Insertion Loss	2.0 dB max.
Return Loss	DC5500 MHz: 12 dB min
Rejection LP port to Common port, Highpass Port Terminated	7000-50000 MHz: -50 dB
Power Handling Sea level at ambient temperature, COM port 50 Ohm loaded	1 W CW max.

Highpass Port
Passband	7000-50000 MHz
Insertion Loss	2.0 dB max.
Return Loss	7000-50000 -10 dB min
Rejection	DC-5500 MHz: -55 dB
Power Handling Sea level at ambient temperature, COM port 50 Ohm loaded	2 W CW max.

Mechanical Specifications
RF Connectors	2.4 mm
