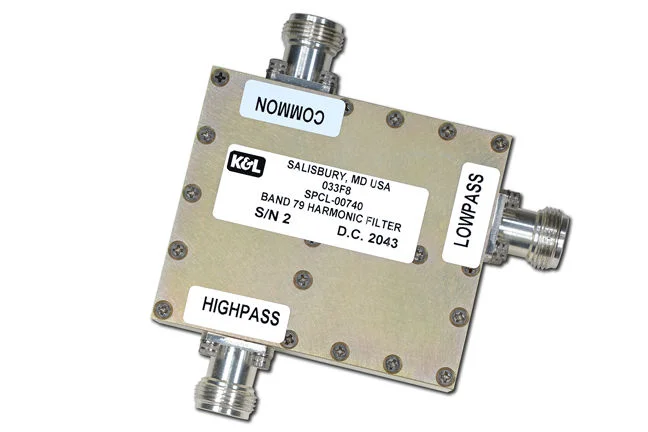

SPCL-00740

Overview

Product SKU:

Product Name: SPCL-00740

Separates the Carrier below 5000 MHz from its Harmonics up to 15000 MHz

Prevents the Carrier from Reflecting to the D.U.T or Entering the Spectrum Analyzer

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Duplexers are applicable for multiple markets, including defense, EW and RADAR.

Markets

Defence Communications

Product Specifications

Lowpass Port
Passband	DC-5000 MHz
Insertion Loss	2.0 dB max.
Return Loss	DC5000 MHz : - 12 dB min
Rejection LP port to Common port, Highpass Port Terminated	6000-15000 MHz : -70 dB
Power Handling Sea level at ambient temperature, COM port 50 Ohm loaded	50 W CW max
PIM: 2 Tones (+43) dBm each presented at common port in lowpass filter region Harmonics: 1 Tone (+43) dBm presented at common port in lowpass filter region, measured at the highpass port	Base part number: -110 dBc Base part number: (-1): -130 dBc Base part number: (-2): -156 dBc Base part number: (-3): -161 dBc

Highpass Port
Passband	6000-15000 MHz
Insertion Loss	2.0 dB max.
Return Loss	-10 dB min.
Rejection	DC-5000 MHz: -70 dB
Power Handling Sea level at ambient temperature, COM port 50 Ohm loaded	50 W CW max

Mechanical Specifications
RF Connectors	N-Type (F)
