WAVEGUIDE DIPLEXER

TCOM 428-01


BSC_TCOM-428-01

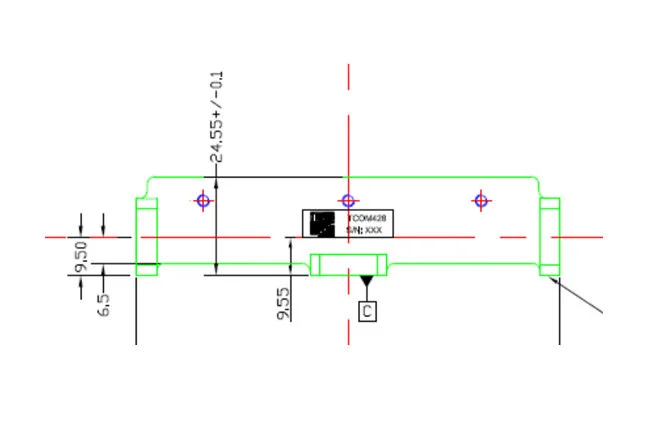

Overview

Product SKU ID :

Product Name : TCOM 428-01

BSC have a wide range of components that have been designed for the Telecom Industry. This low loss waveguide diplexer is designed to operate in Q Band, with low loss and extremely high isolation realised using BSC proprietary pseudo-elliptic technology the diplexer offers an ideal solution.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Delivering versatile high performance, our Diplexers are applicable for multiple markets, including defense, EW, communications, satcom, and automated test equipment.

Markets

Defense Aerospace Communications GPS

MPG_Connecting_Protecting

Product Specifications

Tx Passband Rx Passband

Insertion Loss

Passband Ripple in any 50 MHz

Return Loss

Rejection from 39.65 to 40.0 GHz

Power Handling

Operating temperature

Connectors

External Finish

38.95 to 39.3 GHz 39.65 to 40.0 GHz 2.3 dB max 0.3 dB max 16 dB min 55 dB min 10 W max

-30 to 70°C

UBR28 Flange

Silver Plate
