9DLX0-1090-1030/X8

Overview

Product SKU ID:

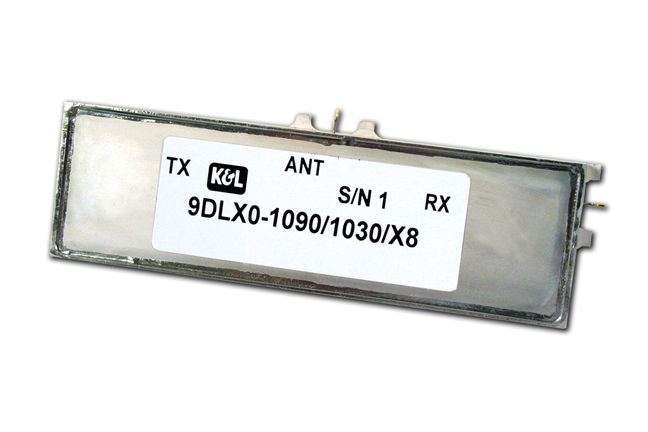

Product Name : 9DLX0-1090-1030/X8

1030 Receive, 1090 Transmit; Dual Filter Available

Low Loss, Small Size; Altitude 70,000 Feet

800 Watts minimum Peak at 2% duty cycle

16 Watts Continuous in Transmit Band

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Diplexers are applicable for multiple markets, including defense, EW, communications, SATCOM, and automated test equipment.

Markets

Defense Aerospace Communications GPS

Product Specifications

Receive Passband	RX Passband Insertion Loss	RX Passband Return Loss	35 dB BW	Transmit Passband	TX Passband Insertion Loss	TX Passband Return Loss	20 dB BW:	Operating Temperature:	Dimensions
1026 – 1034	4.5 dB maximum	RX Passband Return Loss	44 MHz maximum	1086 – 1094	1.0 dB maximum	14 dB minimum	90 MHz maximum	-41°C to +85°C	3.60” x 1.125” x 0.625” (including grounding tabs)
