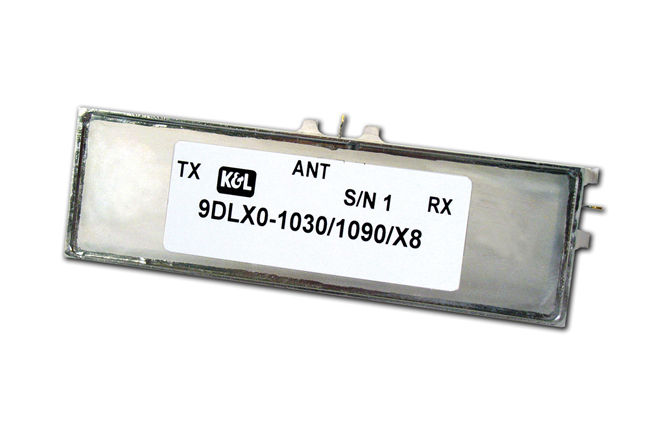

Product Name : 9DLX0-1090-1030/X8
1030 Receive, 1090 Transmit; Dual Filter Available
Low Loss, Small Size; Altitude 70,000 Feet
800 Watts minimum Peak at 2% duty cycle
16 Watts Continuous in Transmit Band
Delivering versatile high performance, our Diplexers are applicable for multiple markets, including defense, EW, communications, SATCOM, and automated test equipment.
Receive Passband | RX Passband Insertion Loss | RX Passband Return Loss | 35 dB BW | Transmit Passband | TX Passband Insertion Loss | TX Passband Return Loss | 20 dB BW: | Operating Temperature: | Dimensions |
1086 – 1094 | 4.5 dB maximum | 14 dB minimum | 44 MHz maximum | 1026 – 1034 | 1.0 dB maximum | 14 dB minimum | 90 MHz maximum | -41°C to +85°C | 3.60” x 1.125” x 0.625” (including grounding tabs) |
