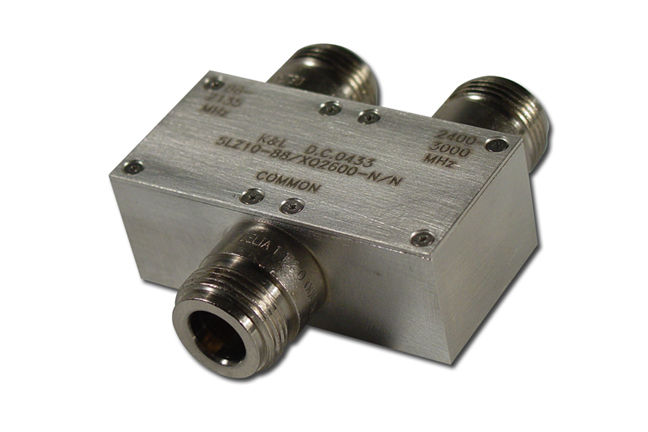

5LZ10-00025

Overview

Product SKU ID:

Product Name : 5LZ10-00025

Small Compact Size - Low Cost

Low-Loss Design (1.2dB Max) Eliminates Hybrid Losses and Reduces Noise Figure

In-Building or Tunnel Radio Distribution Systems

Replacement of High-Loss Hybrid Combiner/Splitters

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Delivering versatile high performance, our Diplexers are applicable for multiple markets, including defense, EW, communications, SATCOM, and automated test equipment.

Markets

Defense Aerospace Communications GPS

Product Specifications

Passbands		Passband Insertion Loss	Passband Return Loss	Rejection			Passband Power Handling
Low Channel	High Channel	1.2 dB maximum	16 dB minimum	Low Channel	High Channel	Isolation	10 Watts CW maximum
88–2185 MHz	2400–3000 MHZ	1.2 dB maximum	16 dB minimum	35 db minimum; 2400–3000 MHz	35 dB minimum; 88–2185 MHz	20 db minimum; 88–3000 MHz	10 Watts CW maximum

Characteristic Impedance	Dimensions	Connectors	Operating Temperature Range	Operating Humidity	Storage Temperature Range	Finish/Construction	Mounting
50 ohms (in passbands)	2.0” W x 1.0” D x 0.75” (excluding connectors)	N-F	-20° C to +70° C	0-90%, non-condensing	-40° C to +85° C	Silver plated aluminum	2-56 x 0.15” deep tapped holes on mounting surface (x4)
